Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

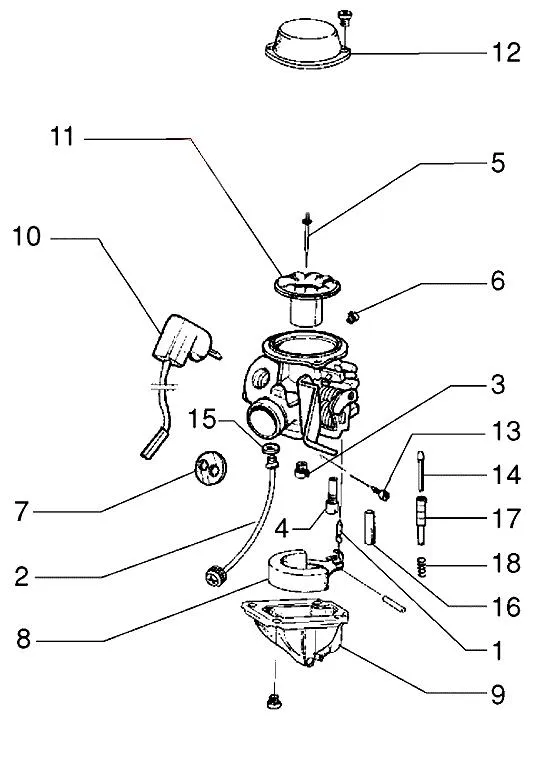

Moteur : T23 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T23.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/7/2/img/73072.jpg)
1 |
SEAT OF L'AIGUILLE OEM PIAGGIO 125 SFERA 2001 <, ET4-CM102203 More informationQuantity required : 1 |
||||||
2 |
478118 - TRANS GAZ More informationQuantity required : 1 |
||||||
|
3 |
GICLEUR MAXI 87,5 |
||||||
|
4 |
GICLEUR RALENTI |
||||||
|
5 |
POINTEAU |
||||||
|
6 |
GICLEUR STARTER |
||||||
|
7 |
VOLET GAZ |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/6/5/img/66565.jpg)
8 |
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" 125 LIBERTY, SFERA, HEXAGON, VESPA ET4/APRILIA 125 MOJITO -478564 More informationQuantity required : 1 |
||||||
|
9 |
CUVETTE |
||||||
|
10 |
DISP STARTER |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/6/3/img/66563.jpg)
11 |
BOISSEAU/VOLET DE THROTTLE WITH MEMBRANE (D21) OEM PIAGGIO 125 LIBERTY, SFERA, HEGAGON LX4, VESPA ET4 1998 > 2005/APRILIA 125 MOJITO 1999 > 2001-478560 More informationQuantity required : 1 |
||||||
|
12 |
478559 - COUVERCLE More informationQuantity required : 1 |
||||||
|
13 |
478563 - VIS REGLAGE More informationQuantity required : 1 |
||||||
|
14 |
482357 - TIGE More informationQuantity required : 1 |
||||||
|
15 |
RONDELLE |
||||||
|
16 |
DISPOSITIF |
||||||
|
17 |
482836-PISTON CARBU More informationQuantity required : 1 |
||||||
|
18 |
482835 - RESSORT More informationQuantity required : 1 |
