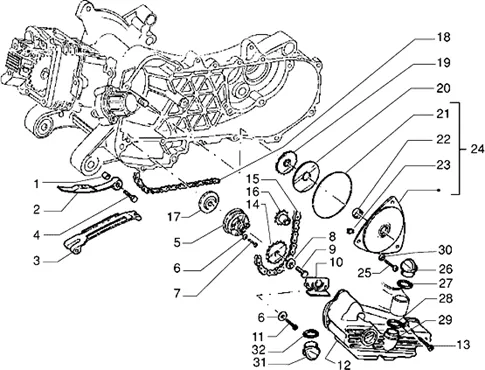

Moteur : T11 ENSEMBLE POMPE - CARTER HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T11.PNG)
1 |
478247 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/6/4/img/68764.jpg)
2 |
GLISSIERE TENDEUR DE CHAIN OEM PIAGGIO 50-100 COMMON A LA RANGE-828561 More informationQuantity required : 1 |
|||||||||
|
3 |
PATIN |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/9/5/img/70995.jpg)
3 |
PATIN DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-969877 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
4 |
SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089 More informationQuantity required : 1 |
|||||||||
|
5 |
436643 - POMPE HUILE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
6 |
WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/9/img/68759.jpg)
7 |
SCREW BTR (5X23) OEM PIAGGIO COMMON A LA RANGE-828493 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/1/img/66501.jpg)
8 |
WASHER SPRING (6. 4X20X2) OEM PIAGGIO COMMON A LA RANGE-436695 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
9 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 1 |
|||||||||
|
10 |
436810 - PROTECTION More informationQuantity required : 1 |
|||||||||
|
11 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
|||||||||
|
11 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
|||||||||
|
12 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
13 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 6 |
|||||||||
|
13 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/2/img/66182.jpg)
14 |
SPROCKET OIL PUMP OEM PIAGGIO 50-125-300 COMMON A LA RANGE-287913 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/4/img/66454.jpg)
15 |
CHAIN DE CONTROL OIL PUMP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-434447 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/8/img/69068.jpg)
16 |
SPROCKET OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-833495 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/4/img/66504.jpg)
17 |
GASKET OF CASING OIL PUMP OEM PIAGGIO 50 4T ZIP, LIBERTY, FLY, PRIMAVERA, SPRINT-436751 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/8/8/img/66488.jpg)
18 |
CHAIN DE TIMING OEM PIAGGIO 125 LIBERTY, SFERA, HEXAGON, ET4 1998 > 2003/APRILIA 125 MOJITO 1999 > 2001-436246 More informationQuantity required : 1 |
|||||||||
|
19 |
434442-SPROCKET More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/0/img/66380.jpg)
20 |
WASHER AJUSTEMENT OEM PIAGGIO COMMON A LA RANGE-430535 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/2/img/69332.jpg)
21 |
GASKET OF SPROCKET ENTRAINEMENT OF PUMP A OIL OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, ZIP 4T, VESPA LX 4T, VESPA-S 4T-844888 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/4/img/66184.jpg)
22 |
OIL SEAL (22X32X7) VILEBREQUIN COTE VARIATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-2879633 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/7/img/66447.JPG)
23 |
BUFFER DE CHAIN OF PUMP A OIL PIAGGIO COMMON A LA RANGE-434345 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/5/img/66555.jpg)
24 |
COVER TIMING (LIVRE WITH GASKET) OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, VESPA PRIMAVERA 4T, VESPA LX 4T-478324 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
25 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/7/9/img/69279.jpg)
26 |
JAUGE OIL ENGINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-843364 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/8/8/img/66588.jpg)
27 |
GASKET PUMP OIL OEM PIAGGIO 50 4T LIBERTY, ZIP 2005 <-479985 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/8/0/img/158280.jpg)
28 |
O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397 More informationQuantity required : 1 |
|||||||||
|
28 |
O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397 More informationQuantity required : 1 |
|||||||||
|
29 |
430536-INDICATEUR STEERING More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
30 |
WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/0/img/66500.jpg)
31 |
CAP DE VIDANGE OIL OEM PIAGGIO COMMON A LA RANGE 1998 > 2005-436692 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/1/img/66191.jpg)
32 |
GASKET OF CREPINE D'HUILE OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO-288474 More informationQuantity required : 1 |
|||||||||
