Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

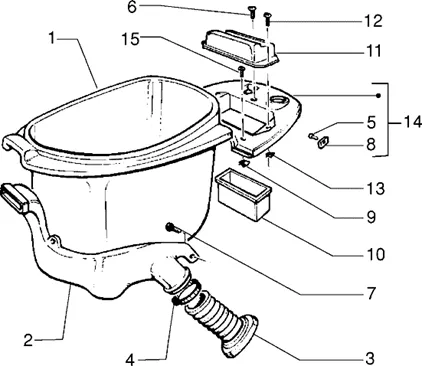

Châssis : T31 PORTE CASQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T31.PNG)
1 |
HELMET COMPARTMENT "PIAGGIO GENUINE PART" PIAGGIO 50-125 VESPA LX, VESPA-S -675266 More informationQuantity required : 1 |
|||||||||
|
2 |
TUYAU ASPIRATION |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/9/8/7/img/77987.jpg)
3 |
298528 - MANCHON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
4 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/0/2/img/65802.jpg)
5 |
RIVET MOUNTING ELEMENT DE CARROSSERIE OEM PIAGGIO COMMON A LA RANGE-182302 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
6 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
|||||||||
|
7 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/2/img/66242.jpg)
8 |
BRACKET DOOR FUSIBLE OEM PIAGGIO COMMON A LA RANGE-290405 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
9 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/1/2/img/66312.jpg)
10 |
COMPARTIMENT/CUVE A BATTERY OEM PIAGGIO 50-125 VESPA LX, LXV-299047 More informationQuantity required : 1 |
|||||||||
|
10 |
573128-BRACKET More informationQuantity required : 1 |
|||||||||
|
11 |
573124-COVER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/7/4/0/img/80740.jpg)
11 |
COVER DE BATTERY OEM PIAGGIO 50-125 VESPA LX 2005 >, VESPA-S 2007 >-576017 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
12 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
13 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/7/3/img/89173.jpg)
14 |
COVER/COVER BATTERY WITH CROCHET FOR LA SEAT OEM PIAGGIO 50-125 VESPA LX 4T, VESPA S 4T-656303 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/6/img/66036.jpg)
15 |
SCREW AUTOTARAUDEUSE (4, 2X25) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259372 More informationQuantity required : 2 |
|||||||||
