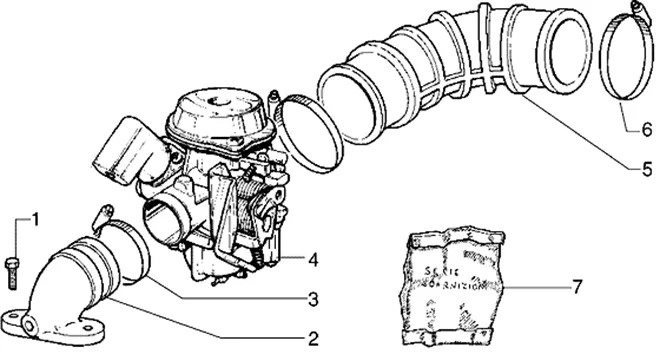

Moteur : T22 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T22.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
1 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/7/2/img/73072.jpg)
1 |
SEAT OF L'AIGUILLE OEM PIAGGIO 125 SFERA 2001 <, ET4-CM102203 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/9/img/66599.jpg)
2 |
FITTING/MANIFOLD INTAKE MAXISCCOOTER OEM PIAGGIO 125 LIBERTY 1998 > 2005, VESPA ET4 1998 > 2005, SFERA 1998 > 2005 (FITTING)-480799 More informationQuantity required : 1 |
||||||
2 |
478118 - TRANS GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/8/img/68498.jpg)
3 |
HOSE CLAMP WITH SCREW WITHOUT FIN (30-45MM) OEM PIAGGIO COMMON A LA RANGE-709677 More informationQuantity required : 1 |
||||||
|
3 |
GICLEUR MAXI 87,5 |
||||||
|
4 |
CARBURATEUR 125 4T |
||||||
|
4 |
GICLEUR RALENTI |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/3/img/66663.jpg)
5 |
SLEEVE ENTRE CARBURETTOR ET AIR FILTER OEM PIAGGIO 125 VESPA ET4, SFERA, LIBERTY, HEXAGON LX4 2005 <-484695 More informationQuantity required : 1 |
||||||
|
5 |
POINTEAU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
6 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 2 |
||||||
|
6 |
GICLEUR STARTER |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/9/img/66979.jpg)
7 |
POCHETTE/KIT JOINTS OF CARBURETTOR OEM PIAGGIO 125 HEXAGON, ET4, LIBERTY, MOJITO 1998 > 2005-498845 More informationQuantity required : 1 |
||||||
|
7 |
VOLET GAZ |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/6/5/img/66565.jpg)
8 |
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" 125 LIBERTY, SFERA, HEXAGON, VESPA ET4/APRILIA 125 MOJITO -478564 More informationQuantity required : 1 |
||||||
|
9 |
CUVETTE |
||||||
|
10 |
DISP STARTER |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/6/3/img/66563.jpg)
11 |
BOISSEAU/VOLET DE THROTTLE WITH MEMBRANE (D21) OEM PIAGGIO 125 LIBERTY, SFERA, HEGAGON LX4, VESPA ET4 1998 > 2005/APRILIA 125 MOJITO 1999 > 2001-478560 More informationQuantity required : 1 |
||||||
|
12 |
478559 - COUVERCLE More informationQuantity required : 1 |
||||||
|
13 |
478563 - VIS REGLAGE More informationQuantity required : 1 |
||||||
|
14 |
482357 - TIGE More informationQuantity required : 1 |
||||||
|
15 |
RONDELLE |
||||||
|
16 |
DISPOSITIF |
||||||
|
17 |
482836-PISTON CARBU More informationQuantity required : 1 |
||||||
|
18 |
482835 - RESSORT More informationQuantity required : 1 |
