Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

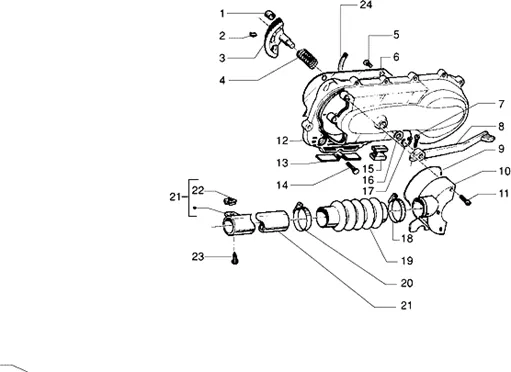

Moteur : T18 DÉMARRAGE À PEDAL - REFROIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/6/img/66166.jpg)
1 |
BUFFER ARRET OEM PIAGGIO COMMON A LA RANGE 2003 <-286207 More informationQuantity required : 1 |
|||||||||
2 |
TAMPON |
|||||||||
|
3 |
KICKSTART SHAFT "PIAGGIO GENUINE PART" 125 HEXAGON LX4, ET4, SFERA, LIBERTY/APRILIA 125 MOJITO -478723- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/3/img/66223.jpg)
4 |
SPRING RAPPEL DE KICK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289495 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
5 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264 More informationQuantity required : 6 |
|||||||||
|
6 |
479263 - DIAPHRAGME AIR CHAUD More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
7 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
|||||||||
|
7 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
|||||||||
|
8 |
LEVIER DE DEMAREUR |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/0/img/66470.jpg)
9 |
GASKET OF PROTECTOR DE CASING TRANSMISSION OEM PIAGGIO 50 LIBERTY, ZIP, FLY, PRIMAVERA, SPRINT-435251 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/9/4/img/70994.jpg)
10 |
COVER DE COOLING CASING DE TRANSMISSION OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S-9698046 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/1/img/66471.jpg)
11 |
SCREW CRUCIFORME (5X15) OEM PIAGGIO COMMON A LA RANGE-435295 More informationQuantity required : 1 |
|||||||||
|
12 |
COUVERCLE |
|||||||||
|
13 |
JOINT |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
14 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 11 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/9/img/66039.jpg)
15 |
BUFFER DE CENTRE STAND OEM PIAGGIO 50 FLY, LIBERTY, TYPHOON, ZIP, VESPA LX, VESPA-S/APRILIA 50 SR, SPORT-CITY, SCARABEO-259625 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/3/img/66443.jpg)
16 |
WASHER SHAFT OF KICK (16, 3X23, 8) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-433987 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
17 |
CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
18 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/3/img/66303.jpg)
19 |
SOUFFLET/SLEEVE COOLING CASING OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S-298548 More informationQuantity required : 1 |
|||||||||
|
20 |
298561-CLAMP More informationQuantity required : 1 |
|||||||||
|
21 |
HOSE DE REFROISISSEMENT COVER DE TRANSMISSION OEM PIAGGIO VESPA 50-125 LX, 125 VESPA-S, ET4-576267 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
22 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
23 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 1 |
|||||||||
|
24 |
286206 - PLAQUETTE More informationQuantity required : 1 |
|||||||||
|
25 |
581309 - PROTECTION More informationQuantity required : 1 |
|||||||||
