Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

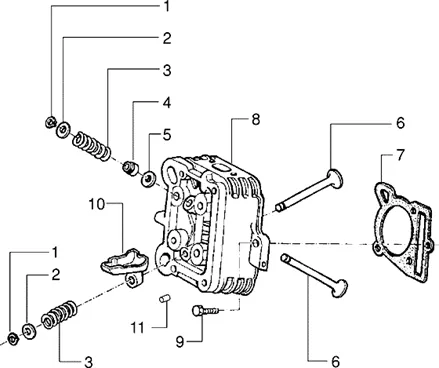

Moteur : T5 ENSEMBLE CULASSE - SOUPAPES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T5.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/2/img/66152.jpg)
1 |
HALF-LUNE/CLAVETTE DE VALVE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-285846 More informationQuantity required : 4 |
||||||
2 |
COUPELLE |
||||||
|
3 |
RESSORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
4 |
GASKET/BUSH OF VALVE OEM PIAGGIO COMMON A LA RANGE-436438 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/2/img/66222.jpg)
5 |
COUPELLE INFERIEURE VALVE OEM PIAGGIO 50 4T ZIP, FLY, LIBERTY 2016 <-289420 More informationQuantity required : 1 |
||||||
|
6 |
436228-VALVE ECHPT More informationQuantity required : 1 |
||||||
|
6 |
436229-VALVE INTAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/3/img/66503.jpg)
7 |
CYLINDER HEAD GASKET OEM PIAGGIO 125 MOJITI 1999 > 2001, ET4, SFERA-436711 More informationQuantity required : 1 |
||||||
|
8 |
436430 - CULASSE 125 4T More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
9 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 1 |
||||||
|
10 |
COUPELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/6/img/66476.jpg)
11 |
PION DE CENTRAGE N- 2 OEM PIAGGIO COMMON A LA RANGE-435571 More informationQuantity required : 1 |
