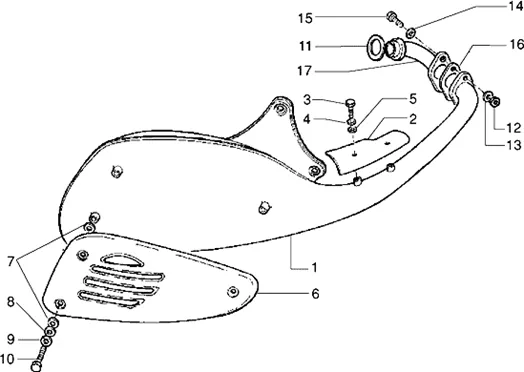

Moteur : T25 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T25.PNG)
1 |
EXHAUST SILENCER "PIAGGIO GENUINE PART" 125 VESPA ET4 - 1ST GENERATION -831869- More informationQuantity required : 1 |
|||||||||
|
2 |
480401 - DEFLECTEUR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/0/img/66440.jpg)
3 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-433800 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/6/img/68586.jpg)
4 |
WASHER T (5X14) DE SHEET METAL EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-826118 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
5 |
WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/0/1/7/img/93017.jpg)
6 |
PROTECTOR/SHEET METAL DE SILENCER OEM PIAGGIO 50-125 LIBERTY, VESPA LX, VESPA-S, 125 VESPA GTS-8454655 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/5/img/68585.jpg)
7 |
WASHER SPACER PROTECTOR EXHAUST OEM PIAGGIO APRILIA SRV 850 201 > 2014, SR 50 2018/GILERA DNA, RUNNER, STALKER, GP 800/PIAGGIO FLY, NRG, TYPHOON, ZIP-826117 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
8 |
WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733 More informationQuantity required : 3 |
|||||||||
|
9 |
WASHER T (5X14) DE SHEET METAL EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-826118 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
10 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/8/img/66458.jpg)
11 |
GASKET EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC COOLING PER AIR-434716 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/3/0/img/86830.jpg)
12 |
NUT BORGNE (M6) OEM PIAGGIO COMMON A LA RANGE-648349 More informationQuantity required : 2 |
|||||||||
|
12 |
NUT BORGNE (M6) OEM PIAGGIO COMMON A LA RANGE-648349 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
13 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
|||||||||
|
14 |
709003-WASHER More informationQuantity required : 2 |
|||||||||
|
15 |
436502 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/6/6/img/77066.jpg)
16 |
GASKET- FROM PIPE TO EXHAUST MAIN BODY "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 1995>1999 -259198- More informationQuantity required : 1 |
|||||||||
|
17 |
479172 - COUDE ECHAP More informationQuantity required : 1 |
|||||||||
