Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005 VESPA

Suspensions-roues : T35 TUBE DE DIRECTION - FREIN A DISQUE

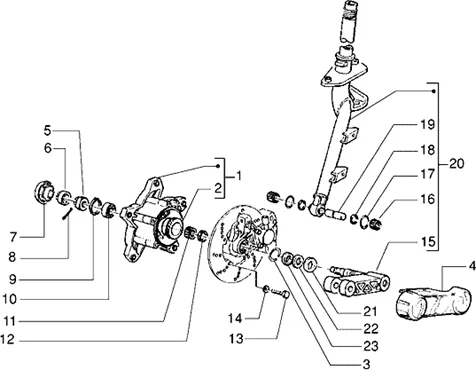

Tube de direction - Frein a disque
Search
560284 - MOYEU AVT

1
P2R reference P2R reference 79702
Maker reference Maker reference 560284

5602846-HUB AVT

More information

Quantity required : 1

COURONNE ENTRAINEUR DE INSTRUMENT CLUSTER OEM PIAGGIO 125-250-400-500 PM3, 50-125 VESPA LX, ET2, ET4, 125-250-300 VESPA GTS 2013 <-267818

2
P2R reference P2R reference 77181
Maker reference Maker reference 267818

COURONNE ENTRAINEUR DE INSTRUMENT CLUSTER OEM PIAGGIO 125-250-400-500 PM3, 50-125 VESPA LX, ET2, ET4, 125-250-300 VESPA GTS 2013 <-267818

More information

Quantity required : 1

WASHER/SPACER OEM PIAGGIO COMMON A LA RANGE-177414

3
P2R reference P2R reference 75021
Maker reference Maker reference 177414

WASHER/SPACER OEM PIAGGIO COMMON A LA RANGE-177414

More information

Quantity required : 1

COVER/PROTECTOR DE ARM DE SUSPENSION FRONT CHROME OEM PIAGGIO 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-250-300 GTS-649113

4
P2R reference P2R reference 79781
Maker reference Maker reference 561433

COVER/PROTECTOR DE ARM DE SUSPENSION FRONT CHROME OEM PIAGGIO 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-250-300 GTS-649113

More information

Quantity required : 1

NUT (14X1. 50) OEM PIAGGIO COMMON A LA RANGE-021114

5
P2R reference P2R reference 65601
Maker reference Maker reference 0211145

NUT (14X1. 50) OEM PIAGGIO COMMON A LA RANGE-021114

More information

Quantity required : 1

CAPUCHON/CAGE A GOUPILLE DE WHEEL OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-177609

6
P2R reference P2R reference 75029
Maker reference Maker reference 177609

CAPUCHON/CAGE A GOUPILLE DE WHEEL OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-177609

More information

Quantity required : 1

CAP DE WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER CHROME-1C000523

7
P2R reference P2R reference 76015
Maker reference Maker reference 0925175

CAP DE WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER CHROME-1C000523

More information

Quantity required : 1

GOUPILLE SECURITE NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-012789

8
P2R reference P2R reference 65355
Maker reference Maker reference 0127895

GOUPILLE SECURITE NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-012789

More information

Quantity required : 1

CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635

9
P2R reference P2R reference 63823
Maker reference Maker reference 0066355

CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635

More information

Quantity required : 1

BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-177610

10
P2R reference P2R reference 75030
Maker reference Maker reference 177610

BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-177610

More information

Quantity required : 1

CAGE A AIGUILLE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXISCCOTER-177442

11
P2R reference P2R reference 65778
Maker reference Maker reference 177442

CAGE A AIGUILLE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXISCCOTER-177442

More information

Quantity required : 1

GASKET OF FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-177443

12
P2R reference P2R reference 75023
Maker reference Maker reference 177443

GASKET OF FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-177443

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152

13
P2R reference P2R reference 68436
Maker reference Maker reference 667152

SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152

More information

Quantity required : 1

WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966

14
P2R reference P2R reference 63838
Maker reference Maker reference 0069665

WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966

More information

Quantity required : 1

ARM DE SUSPENSION FRONT OEM PIAGGIO 125-250-300 VESPA GTS, 125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-300 YOURBAN-6483975

15
P2R reference P2R reference 86836
Maker reference Maker reference 6483975

ARM DE SUSPENSION FRONT OEM PIAGGIO 125-250-300 VESPA GTS, 125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-300 YOURBAN-6483975

More information

Quantity required : 1

ROLLER CAGE (16X14. 3) SPINDLE SUSPENSION DE OEM PIAGGIO THREE-WHEELER APE 50 1998 >/PIAGGIO VINTAGE-137146

16
P2R reference P2R reference 65735
Maker reference Maker reference 137146

ROLLER CAGE (16X14. 3) SPINDLE SUSPENSION DE OEM PIAGGIO THREE-WHEELER APE 50 1998 >/PIAGGIO VINTAGE-137146

More information

Quantity required : 2

GASKET ARTICULATION DE BALANCIER DE FORK OEM PIAGGIO COMMON A LA RANGE VESPA ET MP3/GASKET THERMOSTAT PORTER-006731

17
P2R reference P2R reference 63834
Maker reference Maker reference 0067315

GASKET ARTICULATION DE BALANCIER DE FORK OEM PIAGGIO COMMON A LA RANGE VESPA ET MP3/GASKET THERMOSTAT PORTER-006731

More information

Quantity required : 2

GASKET OF ARM ARTICULATION DE FORK FRONT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-119219

18
P2R reference P2R reference 65707
Maker reference Maker reference 119219

GASKET OF ARM ARTICULATION DE FORK FRONT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-119219

More information

Quantity required : 2

SPINDLE D'ARTICULATION DE ARM SUSPENSION FRONT OEM PIAGGIO COMMON A LA RANGE SCOOTER VESPA/125-250-300-400-500 MP3-177451

19
P2R reference P2R reference 65779
Maker reference Maker reference 177451

SPINDLE D'ARTICULATION DE ARM SUSPENSION FRONT OEM PIAGGIO COMMON A LA RANGE SCOOTER VESPA/125-250-300-400-500 MP3-177451

More information

Quantity required : 1

6009595 - TUBE DE DIRECTION

20
P2R reference P2R reference 82961
Maker reference Maker reference 6009595

6009595 - TUBE DE DIRECTION

More information

Quantity required : 1

O-RING (34. 65X1. 78) OEM PIAGGIO COMMON A LA RANGE-177408

21
P2R reference P2R reference 65776
Maker reference Maker reference 177408

O-RING (34. 65X1. 78) OEM PIAGGIO COMMON A LA RANGE-177408

More information

Quantity required : 1

WASHER/SPACER OEM PIAGGIO COMMON A LA RANGE-177445

22
P2R reference P2R reference 75024
Maker reference Maker reference 177445

WASHER/SPACER OEM PIAGGIO COMMON A LA RANGE-177445

More information

Quantity required : 1

GASKET ETANCHEITE 26, 5 X 21 X 3 FORK MINGXING OEM PIAGGIO COMMON A LA RANGE-177521

23
P2R reference P2R reference 75028
Maker reference Maker reference 177521

GASKET ETANCHEITE 26, 5 X 21 X 3 FORK MINGXING OEM PIAGGIO COMMON A LA RANGE-177521

More information

Quantity required : 1
