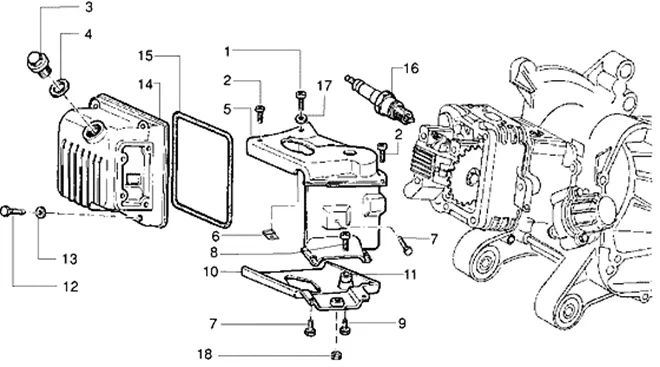

Moteur : T7 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T7.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/1/img/65391.jpg)
1 |
SCREW PARKER (5X15) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015737 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
2 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/0/img/66500.jpg)
3 |
CAP DE VIDANGE OIL OEM PIAGGIO COMMON A LA RANGE 1998 > 2005-436692 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/1/img/66191.jpg)
4 |
GASKET OF CREPINE D'HUILE OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO-288474 More informationQuantity required : 1 |
||||||
5 |
DEFLECTEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/5/6/img/111156.jpg)
6 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-CM017414 More informationQuantity required : 1 |
||||||
|
7 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/8/img/65398.jpg)
8 |
SCREW CRUCIFORME (5X35) OEM PIAGGIO COMMON A LA RANGE-015835 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/1/img/66291.jpg)
9 |
SCREW CRUCIFORME (5X30) ORIGIINE PIAGGIO COMMON A LA RANGE-296324 More informationQuantity required : 1 |
||||||
|
10 |
DEFLECTEUR |
||||||
|
11 |
ENTRETOISE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
12 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 4 |
||||||
|
12 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 4 |
||||||
|
13 |
016335-WASHER More informationQuantity required : 4 |
||||||
|
14 |
CACHE CULASSE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/6/img/66606.jpg)
15 |
GASKET COVER CYLINDER HEAD OEM PIAGGIO 125 ET4 VINTAGE-481075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/1/5/img/66515.jpg)
16 |
SPARK PLUG CHAMPION RG4HC OEM PIAGGIO COMMON A TOUTE LA RANGE-438027 More informationQuantity required : 1 |
||||||
|
17 |
013754-WASHER S01375400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
18 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-804457 More informationQuantity required : 1 |
