Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

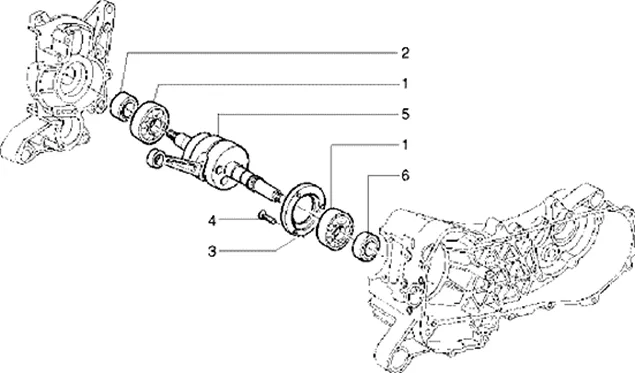

Moteur : T3 VILEBREQUIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T3.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/2/img/66652.jpg)
1 |
BEARING (25X68X12) DE VILLEBREQUIN OEM PIAGGIO 125 TYPHOON 2T, SKIPPER 2T, HEXAGON 2T 1998 > 2005/GILERA 125 RUNNER 2T 1998 > 2005-483970 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/1/8/img/66218.jpg)
2 |
OIL SEAL (18X28X7) OEM PIAGGIO COMMON A LA RANGE-2892763 More informationQuantity required : 1 |
||||||
3 |
FLASQUE |
||||||
|
4 |
478257 - VIS More informationQuantity required : 3 |
||||||
|
5 |
410223 - EMBIELLAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/4/img/66184.jpg)
6 |
OIL SEAL (22X32X7) VILEBREQUIN COTE VARIATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-2879633 More informationQuantity required : 1 |
