Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

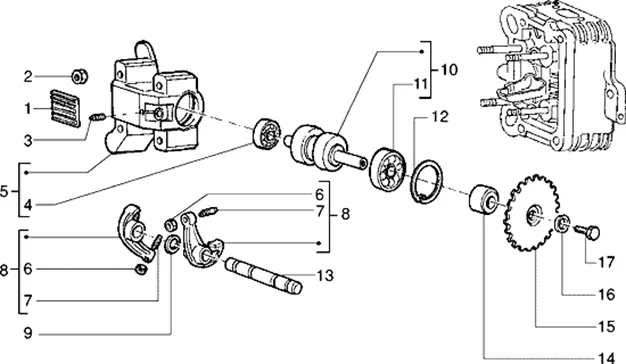

Moteur : T6 ENSEMBLE SUPPORT BALANCIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T6.PNG)
1 |
SILENBLOC |
||||||
|
2 |
434078 - ECROU More informationQuantity required : 4 |
||||||
|
3 |
VIS |
||||||
|
4 |
288259 - ROULEMENT More informationQuantity required : 1 |
||||||
|
5 |
4366675 - SUPPORT More informationQuantity required : 1 |
||||||
|
6 |
ECROU |
||||||
|
7 |
436504 - VIS REGLAGE More informationQuantity required : 2 |
||||||
|
8 |
288747T-CULBUTEUR CPLT More informationQuantity required : 2 |
||||||
|
9 |
RONDELLE |
||||||
|
10 |
4363645-CAMSHAFT EX 4363645 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/2/img/66552.jpg)
11 |
BEARING (12X32X10) OEM PIAGGIO COMMON A LA RANGE-478261 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/2/img/63822.jpg)
12 |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-006632 More informationQuantity required : 1 |
||||||
|
13 |
AXE CULBUTEUR |
||||||
|
14 |
436366-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/4/img/66464.jpg)
15 |
COURONNE TIMING COTE CAMSHAFT OEM PIAGGIO 50 FLY 4T, ZIP 4T, VESPA LX 4T, LIBERTY 4T, PRIMAVERA 4T-434943 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/1/img/66501.jpg)
16 |
WASHER SPRING (6. 4X20X2) OEM PIAGGIO COMMON A LA RANGE-436695 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
17 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 1 |
