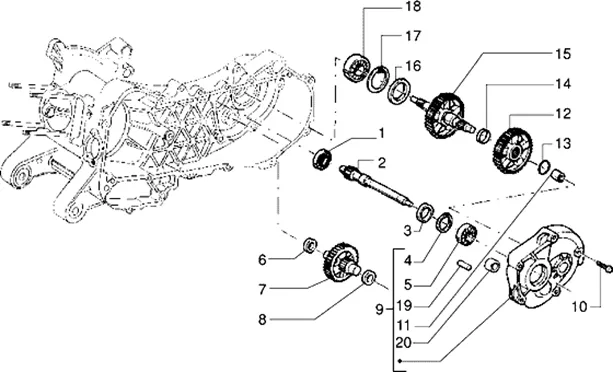

Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005 VESPA

Moteur : T12 AXE ROUE
Axe roue
Search
BEARING (12X32X10) OEM PIAGGIO COMMON A LA RANGE-478261

1
P2R reference P2R reference 66552
Maker reference Maker reference 478261

BEARING (12X32X10) OEM PIAGGIO COMMON A LA RANGE-478261

More information

Quantity required : 1

8260956 - ARBRE POULIE

2
P2R reference P2R reference 68582
Maker reference Maker reference 8260956

8260956 - ARBRE POULIE

More information

Quantity required : 1

couvercle m roue

2
P2R reference P2R reference
Maker reference Maker reference 826131

couvercle m roue

OIL SEAL (22X47X7) OEM PIAGGIO COMMON A LA RANGE-430391

3
P2R reference P2R reference 66378
Maker reference Maker reference 430391

OIL SEAL (22X47X7) OEM PIAGGIO COMMON A LA RANGE-430391

More information

Quantity required : 1

433748 - CIRCLIPS

4
P2R reference P2R reference 66439
Maker reference Maker reference 433748

433748 - CIRCLIPS

More information

Quantity required : 1

BEARING (17X47X14) DE ARM DE SUSPENSION REAR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-82545R

5
P2R reference P2R reference 68546
Maker reference Maker reference 82545R

BEARING (17X47X14) DE ARM DE SUSPENSION REAR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-82545R

More information

Quantity required : 1

WASHER PLATE (16X26X1) SHAFT INTERMEDIAIRE DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288639

6
P2R reference P2R reference 66196
Maker reference Maker reference 288639

WASHER PLATE (16X26X1) SHAFT INTERMEDIAIRE DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288639

More information

Quantity required : 1

4860055 - ARBRE DE RENVOI

7
P2R reference P2R reference 66701
Maker reference Maker reference 4860055

4860055 - ARBRE DE RENVOI

More information

Quantity required : 1

435993 - ENTRETOISE

8
P2R reference P2R reference 66480
Maker reference Maker reference 435993

435993 - ENTRETOISE

More information

Quantity required : 1

COUVERCLE MOYEU ARR M041M*68631

9
P2R reference P2R reference
Maker reference Maker reference 4843146

COUVERCLE MOYEU ARR M041M*68631

SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-B017632

10
P2R reference P2R reference 72769
Maker reference Maker reference B017632

SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-B017632

More information

Quantity required : 5

174710 - BAGUE

11
P2R reference P2R reference 65769
Maker reference Maker reference 174710

174710-BUSH

More information

Quantity required : 1

4837455 - AXE ROUE

12
P2R reference P2R reference 78995
Maker reference Maker reference 4837455

4837455-SPINDLE WHEEL

More information

Quantity required : 1

13
P2R reference P2R reference
Maker reference Maker reference 0064195

434870 - ENTRETOISE

14
P2R reference P2R reference 78641
Maker reference Maker reference 434870

434870-SPACER

More information

Quantity required : 1

4843265 - COUPLE AXE ROUE

15
P2R reference P2R reference 66658
Maker reference Maker reference 4843265

4843265-COUPLE SPINDLE WHEEL

More information

Quantity required : 1

OIL SEAL (30X47X6) WHEEL SPINDLE OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-478498

16
P2R reference P2R reference 66558
Maker reference Maker reference 478498

OIL SEAL (30X47X6) WHEEL SPINDLE OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-478498

More information

Quantity required : 1

CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647

17
P2R reference P2R reference 63825
Maker reference Maker reference 0066475

CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647

More information

Quantity required : 1

BEARING (20X47X14) SHAFT OF PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-434735

18
P2R reference P2R reference 66459
Maker reference Maker reference 434735

BEARING (20X47X14) SHAFT OF PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-434735

More information

Quantity required : 1

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

19
P2R reference P2R reference 72696
Maker reference Maker reference B015956

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

More information

Quantity required : 2

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

20
P2R reference P2R reference 66417
Maker reference Maker reference 431860

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

More information

Quantity required : 1
