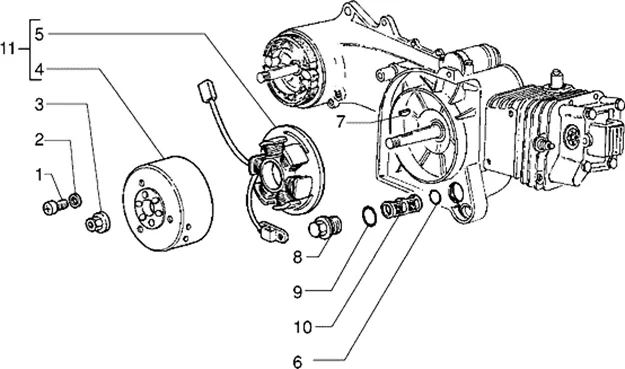

Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005 VESPA

Moteur : T19 VOLANT MAGNETIQUE
Volant magnetique
Search
SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662

1
P2R reference P2R reference 68770
Maker reference Maker reference 828662

SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662

More information

Quantity required : 3

WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965

2
P2R reference P2R reference 63837
Maker reference Maker reference 0069655

WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965

More information

Quantity required : 5

NUT DE VARIATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289519

3
P2R reference P2R reference 66225
Maker reference Maker reference 289519

NUT DE VARIATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289519

More information

Quantity required : 1

ROTOR M99

4
P2R reference P2R reference
Maker reference Maker reference 826166

ROTOR M99

IGNITION STATOR "PIAGGIO GENUINE PART" 125 LX4, LIBERTY, VESPA ET4 -294971-

5
P2R reference P2R reference 66279
Maker reference Maker reference 294971

IGNITION STATOR "PIAGGIO GENUINE PART" 125 LX4, LIBERTY, VESPA ET4 -294971-

More information

Quantity required : 1

GASKET OF CREPINE D'HUILE OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO-288474

6
P2R reference P2R reference 66191
Maker reference Maker reference 288474

GASKET OF CREPINE D'HUILE OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO-288474

More information

Quantity required : 1

CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267

7
P2R reference P2R reference 63721
Maker reference Maker reference 0002675

CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267

More information

Quantity required : 1

CAP DE VIDANGE OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, VESPA LX 4T, PRIMAVERA 4T, VESPA SPRINT 4T/GILERA 50 STALKER, RUNNER/APRILIA 50 MOJITO, SR H2O, SPORT-CYTY-288548

8
P2R reference P2R reference 66195
Maker reference Maker reference 288548

CAP DE VIDANGE OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, VESPA LX 4T, PRIMAVERA 4T, VESPA SPRINT 4T/GILERA 50 STALKER, RUNNER/APRILIA 50 MOJITO, SR H2O, SPORT-CYTY-288548

More information

Quantity required : 1

GASKET CAP DE VIDANGE (Ø31, 47X1, 78MM) OEM PIAGGIO 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO-285536

9
P2R reference P2R reference 66149
Maker reference Maker reference 285536

GASKET CAP DE VIDANGE (Ø31, 47X1, 78MM) OEM PIAGGIO 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO-285536

More information

Quantity required : 1

CREPINE OIL FILTER OEM PIAGGIO 50FLY 4T, LIBERTY 4T, VESPA LX 4T, VESPA-S 4T, ZIP 4T/APRILIA 50 SPORT-CITY 4T, 125 MOJITO, 125 RS, RX, SX, TUONO-431242

10
P2R reference P2R reference 66400
Maker reference Maker reference 431242

CREPINE OIL FILTER OEM PIAGGIO 50FLY 4T, LIBERTY 4T, VESPA LX 4T, VESPA-S 4T, ZIP 4T/APRILIA 50 SPORT-CITY 4T, 125 MOJITO, 125 RS, RX, SX, TUONO-431242

More information

Quantity required : 1

VOLANT CPLT M99

11
P2R reference P2R reference
Maker reference Maker reference 826167

VOLANT CPLT M99
