Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

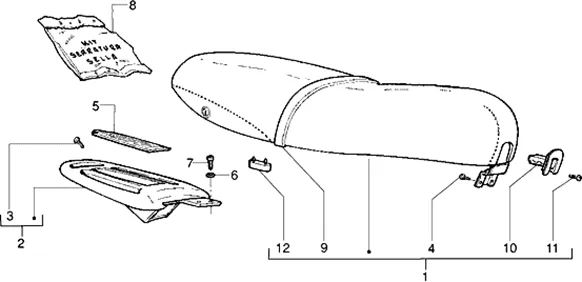

Châssis : T32 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T32.PNG)
1 |
SELLE GRISE ET4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/2/0/8/img/95208.jpg)
1 |
SEAT OEM PIAGGIO 50 VESPA ET2 1998 > 2005, 125 VESPA ET4 1998 > 2005 BLACK-CM0195010061 More informationQuantity required : 1 |
|||||||||
|
2 |
PORTE BAGAGE AR CHROME ET2/4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
3 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
4 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
|||||||||
|
5 |
LUGGAGE RACK COVER "PIAGGIO GENUINE PART" PIAGGIO 50 ET2 1998>2005, 125 ET4 1998>2005 -577545- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
6 |
WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
7 |
SCREW TH (6X25) OEM PIAGGIO COMMON A LA RANGE-031092 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/1/3/8/img/79138.jpg)
8 |
GROUP LOCK DE SEAT OEM PIAGGIO 50-125 ET2, ET4 VESPA, LX 4T-494511 More informationQuantity required : 1 |
|||||||||
|
9 |
494513 - POIGNEE SELLE More informationQuantity required : 1 |
|||||||||
|
9 |
POIGNEE SELLE |
|||||||||
|
9 |
POIGNEE SELLE |
|||||||||
|
9 |
494897 - COURROIE ET4 More informationQuantity required : 1 |
|||||||||
|
9 |
SANGLE ET2 |
|||||||||
|
9 |
494899 - SANGLE ET2 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/1/4/7/img/79147.jpg)
10 |
CROCHET DOOR SAC OEM PIAGGIO 50 LX VESPA-494634 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
11 |
SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/2/img/66292.jpg)
12 |
BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456 More informationQuantity required : 2 |
|||||||||
