Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

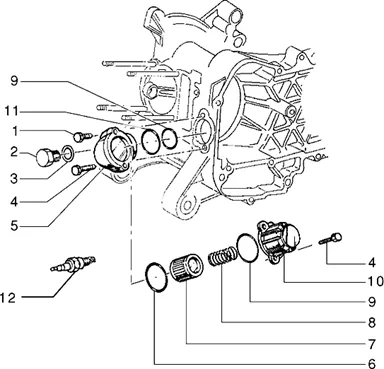

Moteur : T10 FILTRE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T10.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
1 |
SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425 More informationQuantity required : 1 |
||||||
2 |
478013 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/2/img/65412.jpg)
3 |
GASKET OBTURATEUR EXHAUST COMMON A L ENSEMBLE DE LA RANGE-016195 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
4 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/7/img/66607.jpg)
5 |
OIL FILTER UNION "PIAGGIO GENUINE PART" 125 VESPA ET4, HEXAGON, LIBERTY, SFERA/APRILIA 125 MOJITO -482162 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/5/4/img/66354.jpg)
6 |
OIL FILTER GASKET "PIAGGIO GENUINE PART" LIBERTY 125 1998>2005/ VESPA ET4 125 -410231- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/5/3/img/66353.jpg)
7 |
OIL FILTER MAXI SCOOTER OEM PIAGGIO 125 LIBERTY 1998 > 2005, SFERA 1998 > 2005, VESPA ET4 1998 > 2004/APRILIA 125 MOJITO 1999 > 2001-410229 More informationQuantity required : 1 |
||||||
|
8 |
RESSORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/8/img/66608.jpg)
9 |
GASKET COVER DE OIL FILTER OEM PIAGGIO 125 LIBERTY 1998 > 2005, SFERA 1998 > 2005, VESPA ET4 1998 > 2004/APRILIA 125 MOJITO 1999 > 2001-482186 More informationQuantity required : 2 |
||||||
|
10 |
COUVERCLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/1/img/66611.jpg)
11 |
O-RING OEM PIAGGIO COMMON A LA RANGE-482302 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/3/img/67933.jpg)
12 |
SENSOR PRESSION D'HUILE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER ET MOTO (PREVOIR ADAPTATEUR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT)-1A024308R More informationQuantity required : 1 |
