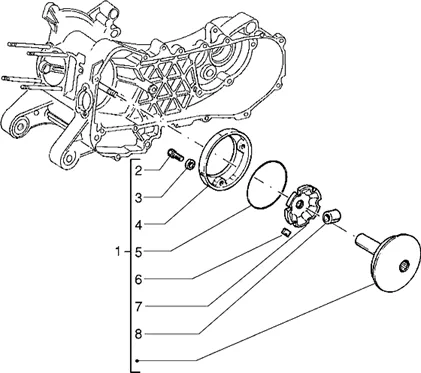

Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005 VESPA

Moteur : T15 DEMI-POULIE MOTRICE
Demi-poulie motrice
Search
RONDELLE

1
P2R reference P2R reference
Maker reference Maker reference 434409

RONDELLE

82522R - DEMI POULIE EX 478153

1
P2R reference P2R reference 68525
Maker reference Maker reference 82522R

82522R-HALF PULLEY EX 478153 *

More information

Quantity required : 1

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

2
P2R reference P2R reference 65408
Maker reference Maker reference 0159965

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

More information

Quantity required : 3

DRIVE BELT MAXI SCOOTER OEM PIAGGIO 125 ET4 1998 > 2005, SFERA 1998 > 2005 (ENGINE 2 SOUPAPES)-478547

2
P2R reference P2R reference 66561
Maker reference Maker reference 478547

DRIVE BELT MAXI SCOOTER OEM PIAGGIO 125 ET4 1998 > 2005, SFERA 1998 > 2005 (ENGINE 2 SOUPAPES)-478547

More information

Quantity required : 1

WASHER SPRING (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-006964

3
P2R reference P2R reference 63836
Maker reference Maker reference 0069645

WASHER SPRING (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-006964

More information

Quantity required : 3

DRIVING HALF PULLEY "PIAGGIO GENUINE PART" 125 HEXAGON LX4, VESPA ET4, SFERA, LIBERTY 125 1998>1999/APRILIA 125 MOJITO -82523R

3
P2R reference P2R reference 68529
Maker reference Maker reference 82523R

DRIVING HALF PULLEY "PIAGGIO GENUINE PART" 125 HEXAGON LX4, VESPA ET4, SFERA, LIBERTY 125 1998>1999/APRILIA 125 MOJITO -82523R

More information

Quantity required : 1

COUVERCLE

4
P2R reference P2R reference
Maker reference Maker reference 434856

COUVERCLE

RONDELLE

4
P2R reference P2R reference
Maker reference Maker reference 434410

RONDELLE

JOINT

5
P2R reference P2R reference
Maker reference Maker reference 479558

JOINT

KICK STARTER PINION "PIAGGIO GENUINE PART" 125 LIBERTY, SFERA, EXAGON, VESPA ET4/APRILIA 125 MOJITO -435027-

5
P2R reference P2R reference 66467
Maker reference Maker reference 435027

OEM SCOOTER KICK OEM PIAGGIO 125 LIBERTY, SFERA, EXAGON, VESPA ET4/APRILIA 125 MOJITO-435027

More information

Quantity required : 1

GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, FLY 2005 >, VESPA LX 2005 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 2005 >-4348555

6
P2R reference P2R reference 66461
Maker reference Maker reference 4348555

GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, FLY 2005 >, VESPA LX 2005 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 2005 >-4348555

More information

Quantity required : 3

WASHER SPRING (10. 5X21. 8X2) OEM PIAGGIO COMMON A LA RANGE-436698

6
P2R reference P2R reference 66502
Maker reference Maker reference 436698

WASHER SPRING (10. 5X21. 8X2) OEM PIAGGIO COMMON A LA RANGE-436698

More information

Quantity required : 1

SUPPORT ROULEAUX

7
P2R reference P2R reference
Maker reference Maker reference 436699

SUPPORT ROULEAUX

NUT 10X1. 25 OEM PIAGGIO COMMON A LA RANGE-436789

7
P2R reference P2R reference 66505
Maker reference Maker reference 436789

NUT 10X1. 25 OEM PIAGGIO COMMON A LA RANGE-436789

More information

Quantity required : 1

GALET/ROLLER OEM PIAGGIO 125 HEXAGON LX4, VESPA ET4, LIBERTY, SFERA/APRILIA 125 MOJITO (SET OF 6)-4878225

8
P2R reference P2R reference 66757
Maker reference Maker reference 4878225

GALET/ROLLER OEM PIAGGIO 125 HEXAGON LX4, VESPA ET4, LIBERTY, SFERA/APRILIA 125 MOJITO (SET OF 6)-4878225

More information

Quantity required : 1
