Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

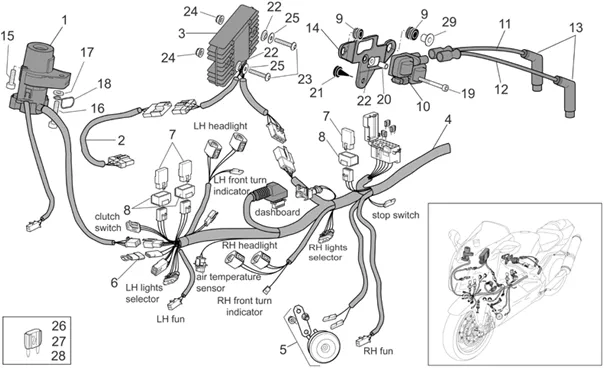

Chassis : 28.53 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.53.PNG)
1 |
AP8127555-BLOCCHETTO AVVIAMENTO-BLOC. More informationQuantity required : 1 |
||||||
|
2 |
AP8127429 - CABLAGGIO VOLANO-REGOLATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/0/1/0/img/48010.jpg)
3 |
VOLTAGE REGULATOR-"PIAGGIO GENUINE PART" APRILIA 1000 TUONO V2 2006>2009, 1000 RSV-2 2004>2008 -AP8127144 More informationQuantity required : 1 |
||||||
|
4 |
AP8127150 - CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
||||||
|
4 |
Câblage principal |
||||||
|
4 |
CABLE BUNDLE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2 -AP8127681- More informationQuantity required : 1 |
||||||
|
5 |
AP8127391 - KLAXON; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/9/img/72189.jpg)
6 |
DIODE DE SECURITE OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 50-125 RS, TUONO, RX, SX, 1000 RSV-2, FALCO, 650 PEGASO, 400-500 ATLANTIC-AP8212588 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
7 |
RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.jpg)
8 |
SANGLE RUBBER DE BLOC OEM PIAGGIO COMMON A LA RANGE-AP8220283 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
9 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 2 |
||||||
|
10 |
AP0266070 - BOBINA ACCENSIONE DOPPIA More informationQuantity required : 1 |
||||||
|
11 |
AP0266145 - CAVO ACCENSIONE POST. More informationQuantity required : 1 |
||||||
|
12 |
AP0266140 - CAVO ACCENSIONE ANT. More informationQuantity required : 1 |
||||||
|
13 |
AP0265246 - PIPE BOUGIE INT.; More informationQuantity required : 2 |
||||||
|
14 |
AP8134889 - SUPPORTO BOBINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/7/img/71867.jpg)
15 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8150351 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/1/img/71931.jpg)
15 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X28) OEM PIAGGIO COMMON A LA RANGE-AP8152238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/7/img/71817.jpg)
16 |
SCREW BTR (8X55) OEM PIAGGIO COMMON A LA RANGE-AP8150046 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/7/img/71827.jpg)
16 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8150164 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/1/2/img/57012.JPG)
17 |
AP8221171-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/6/img/71396.jpg)
18 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8120428 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/8/img/71838.jpg)
19 |
SCREW BTR (6X50) OEM PIAGGIO COMMON A LA RANGE-AP8150202 More informationQuantity required : 1 |
||||||
|
20 |
AP8121020-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/5/img/72275.jpg)
21 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
22 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/5/6/img/50956.jpg)
23 |
SCREW BTR HEAD BOMBEE (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152128 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
24 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
25 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 2 |
||||||
|
26 |
AP8176099 - FUSIBILE 5A More informationQuantity required : 3 |
||||||
|
27 |
AP8176100-FUSIBILE 20A More informationQuantity required : 1 |
||||||
|
28 |
977772-FUSIBLE 15A More informationQuantity required : 2 |
||||||
|
29 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 1 |
