Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

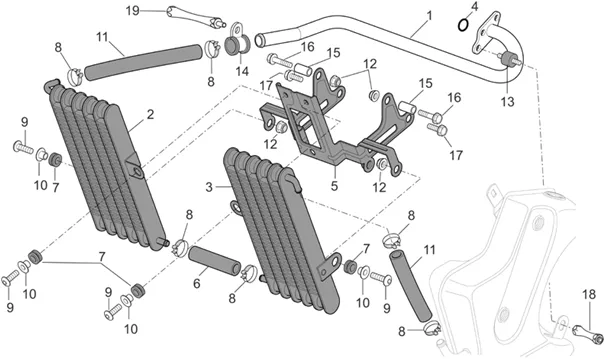

Chassis : 28.35 RADIATEUR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.35.PNG)
1 |
AP8106388-HOSE OIL More informationQuantity required : 1 |
||||||
|
2 |
853297 - RADIATEUR HUILE More informationQuantity required : 1 |
||||||
|
3 |
Radiateur eau gauche |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/7/5/img/49575.jpg)
4 |
O-RING (115) OEM APRILIA COMMON A LA RANGE-AP8144008 More informationQuantity required : 1 |
||||||
|
5 |
AP8154034-BRACKET RADIATORI OIL More informationQuantity required : 1 |
||||||
|
6 |
AP8144518 - TUBO COLLEGAMENTO RADIAT.OLIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
7 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/2/img/71172.jpg)
8 |
CLAMP CLIC (17, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8102349 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
9 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152117 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
10 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 4 |
||||||
|
11 |
HOSE-2B006560 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
12 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/9/5/img/49595.jpg)
13 |
RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-AP8144061 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/1/4/img/45214.jpg)
14 |
CLAMP DE HOSE OIL OEM PIAGGIO APRILIA 1000 RSV-2, TUONO, FUTURA, FALCO, CAPONORD-AP8102731 More informationQuantity required : 1 |
||||||
|
15 |
AP8121313 - DOUILLE CONIQUE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
16 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
17 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
|
18 |
AP8121659 - DISTANZIALE CARENA SX More informationQuantity required : 1 |
||||||
|
19 |
AP8121658 - DISTANZIALE CARENA DX More informationQuantity required : 1 |
