Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

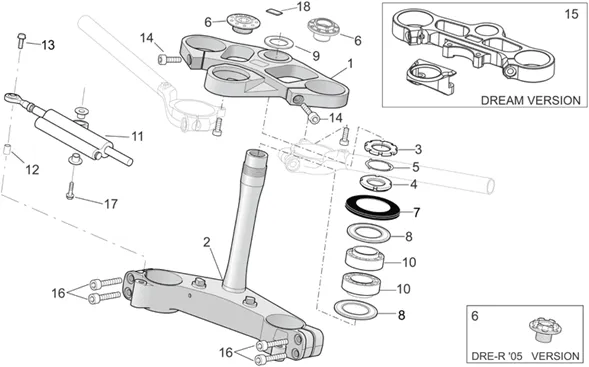

Chassis : 28.11 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.11.PNG)
1 |
AP8163060 - PIASTRA SUPERIORE STERZO More informationQuantity required : 1 |
||||||
|
1 |
AP8163121 - PIASTRA SUPERIORE STERZO More informationQuantity required : 1 |
||||||
|
1 |
AP8163562 - PIASTRA SUPERIORE STERZO More informationQuantity required : 1 |
||||||
|
2 |
AP8163061 - PIASTRA INFERIORE STERZO COMP. More informationQuantity required : 1 |
||||||
|
2 |
AP8163122 - PIASTRA INFERIORE STERZO COMP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/5/img/71525.jpg)
3 |
NUT DE COLONNE DE STEERING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8123643 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/4/img/71524.jpg)
4 |
NUT DE STEERING OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8123642 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/0/img/71450.jpg)
5 |
WASHER DE SECURITE DE STEERING OEM PIAGGIO APRILIA 1000 RSV, TUONO/MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO-AP8121207 More informationQuantity required : 1 |
||||||
|
6 |
AP8121346-BUSH FX. PL. SUP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/4/2/img/72042.jpg)
6 |
CAP/BUSH PLATINE SUPERIEURE DE FORK OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4, TUONO-AP8163170 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/6/img/71526.jpg)
7 |
WASHER PROTECTOR-POUSSIERE OEM APRILIA/MOTOGUZZI COMMON A LA RANGE-AP8123644 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/3/img/71523.jpg)
8 |
ANNEAU PROTECTOR-POUSSIERE STEERING OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO-GUZZI-AP8123641 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/6/img/71976.jpg)
9 |
WASHER FOR NUT TE DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET APRILIA-AP8152384 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/5/img/71985.jpg)
9 |
WASHER DE STEERING OEM APRILIA COMMON A LA RANGE-AP8152442 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/0/8/2/img/176082.jpg)
10 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
|
10 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
|
10 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
|
10 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
|
11 |
2B001706-SHOCK ABSORBER DE STEERING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/0/img/71430.jpg)
12 |
SPACER OEM PIAGGIO COMMON A LA RANGE-AP8121041 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
13 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
|
13 |
AP8152452 - VITE TER M6 X 20 TITANIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
13 |
SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/3/img/71823.jpg)
14 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150107 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
14 |
SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540 More informationQuantity required : 2 |
||||||
|
14 |
Vis tcc |
||||||
|
15 |
Plaque sup. fourche |
||||||
|
16 |
AP8150263-SCREW More informationQuantity required : 4 |
||||||
|
16 |
AP8152449 - VITE TCC M8 X 35 TITANIO More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
17 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/4/4/2/img/51442.jpg)
18 |
STICKER/STICKER/GRAPHIC " APRILIA " OEM PIAGGIO APRILIA 125-250 RS, TUONO, CAPONORD, RSV-2-AP8157770 More informationQuantity required : 1 |
