Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

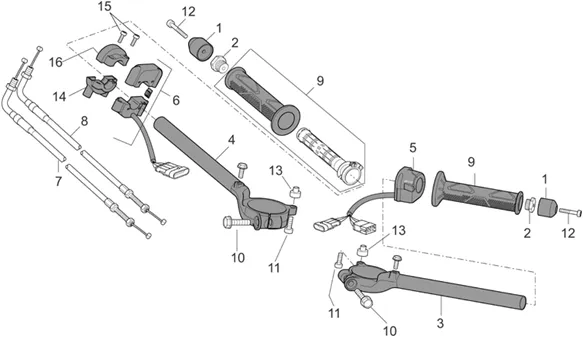

Chassis : 28.30 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/6/img/71226.jpg)
1 |
HANDLEBAR END OEM PIAGGIO APRILIA 750-900 SHIVER, 1000-1100 TUONO/MOTO-GUZZI BREVA, STELVIO, V7, V9, V100-AP8104509 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/1/img/71471.jpg)
2 |
CAP DE HANDLEBAR OEM PIAGGIO COMMON A LA RANGE MOTO-AP8121520 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/3/7/img/139437.jpg)
3 |
AP81186505 - DEMI-GUIDON G More informationQuantity required : 1 |
||||||
3 |
AP8118648 - SEMIMANUBRIO SX More informationQuantity required : 1 |
||||||
|
4 |
AP8118647 - SEMIMANUBRIO DX More informationQuantity required : 1 |
||||||
|
4 |
AP811864944 - DEMI-GUID.DTE More informationQuantity required : 1 |
||||||
|
5 |
AP8127365 - DEVIOLUCI SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/5/2/img/72852.jpg)
6 |
DEVIATEUR/CONTACTEUR FEUX RIGHT OEM PIAGGIO APRILIA 1000 RSV, TUONO, 900 SHIVER, DORSODURO/MOTO-GUZZI GRISO, BELLAGIO, BREVA, SPORT-B045021 More informationQuantity required : 1 |
||||||
|
7 |
OPENING GAS THROTTLE CABLE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2 -AP8114439- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/7/5/img/46175.jpg)
8 |
CABLE/CONTROL/TRANSMISSION LATCH DE THROTTLE OEM PIAGGIO APRILIA 1000 RSV-2 2004 > 2008-AP8114440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/3/9/img/46339.jpg)
9 |
REVETEMENT/GRIP RIGHT + LEFT OEM APRILIA COMMON A LA RANGE-AP8118501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/5/img/71905.jpg)
10 |
SCREW BTR CHROME (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8150543 More informationQuantity required : 2 |
||||||
|
10 |
AP8152449 - VITE TCC M8 X 35 TITANIO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
10 |
SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8150236 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
11 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
11 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/3/8/img/50938.jpg)
12 |
AP8152003 - VIS More informationQuantity required : 2 |
||||||
|
12 |
AP8152446 - VITE TCC M6 X 40 TITANIO More informationQuantity required : 2 |
||||||
|
13 |
AP8221043 - DOUILLE ENTRETOISE More informationQuantity required : 2 |
||||||
|
14 |
AP8118566 - CAVALIER AV. COMMANDE GAZ; More informationQuantity required : 1 |
||||||
|
15 |
AP8118492-SCREW CALOTTE More informationQuantity required : 2 |
||||||
|
16 |
AP8118567-CAVALIER AR. CONTROL THROTTLE More informationQuantity required : 1 |
