Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

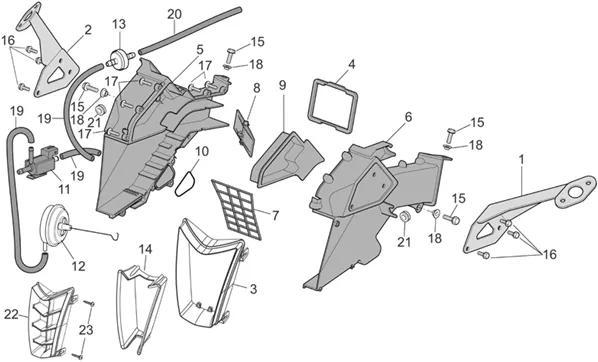

Chassis : 28.18 CARROSSERIE AV. - CONVOYEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.18.PNG)
1 |
AP8134766-BRACKET SX SPECCHI More informationQuantity required : 1 |
||||||
|
2 |
AP8146506-BRACKET SPECCHI DX More informationQuantity required : 1 |
||||||
|
3 |
AP8178118-MASCHERA CONVOGLIATORE More informationQuantity required : 1 |
||||||
|
4 |
AP8144457 - GUARNIZIONE CONVOGLIATORE More informationQuantity required : 1 |
||||||
|
5 |
AP8158113 - SEMICONVOGLIATORE DX More informationQuantity required : 1 |
||||||
|
6 |
AP8158114 - SEMICONVOGLIATORE SX More informationQuantity required : 1 |
||||||
|
7 |
AP8158116-GRIGLIA CONVOGLIATORE More informationQuantity required : 1 |
||||||
|
8 |
AP8104438-VALVOLA A FARFALLA More informationQuantity required : 1 |
||||||
|
9 |
AP8158115-DIAFRAMMA RISUONATORE More informationQuantity required : 1 |
||||||
|
10 |
AP8144582-ANELLO OR 3181 More informationQuantity required : 1 |
||||||
|
11 |
AP8127176 - ELETTROVALVOLA 3 VIE More informationQuantity required : 1 |
||||||
|
12 |
AP8104336-ATTUATORE PNEUMATICO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/0/img/71230.jpg)
13 |
VALVE DE RETENUE CIRCUIT ALIMENTATION OEM PIAGGIO 125 MP3, X8, X-EVO, 125-250 BEVERLY, X9/GILERA 125 RUNNER 4T/APRILIA 125-250 ATLANTIC, 125 MOJITO, 1000 RSV-2-AP8104594 More informationQuantity required : 1 |
||||||
|
14 |
AP8178012 - MASCHERA CONVOGLIATORE INT.V. More informationQuantity required : 1 |
||||||
|
14 |
AP8178936 - MASCHERA CONVOGLIATORE INTERNA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
15 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 4 |
||||||
|
15 |
AP8152452 - VITE TER M6 X 20 TITANIO More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
16 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
17 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
18 |
BUSH EN T (6. 30X10X7. 50) OEM APRILIA COMMON A LA RANGE-AP8121728 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
19 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 3 |
||||||
|
20 |
AP8144015-HOSE OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
21 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 2 |
||||||
|
22 |
AP8184681 - CACHE More informationQuantity required : 1 |
||||||
|
22 |
AP8179263 - MASCHERA CONVOGLIATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
23 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 1 |
