Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

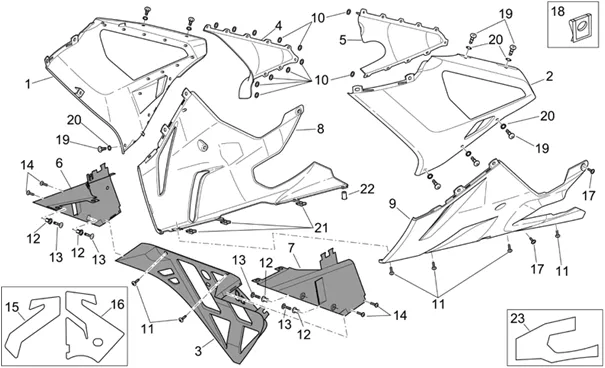

Chassis : 28.21 CARROSSERIE AV. - CARÉNAGE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.21.PNG)
1 |
AP8179453 - CARENA LAT.SUP.DX V.ROS.FL. More informationQuantity required : 1 |
||||||
|
1 |
AP8179463 - CARENA LAT.SUP.DX V.BIANCO APR More informationQuantity required : 1 |
||||||
|
1 |
AP8184318 - CARENAGE More informationQuantity required : 1 |
||||||
|
1 |
AP8184335 - CARENAGE More informationQuantity required : 1 |
||||||
|
1 |
AP8184352 - CARENE More informationQuantity required : 1 |
||||||
|
1 |
AP8184386 - CARENE LATERALE D NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8184682 - CARENE LATERALE D.BLEUE More informationQuantity required : 1 |
||||||
|
1 |
AP8184701 - CARENE LATERALE D SILVER More informationQuantity required : 1 |
||||||
|
1 |
AP8179265 - CARENA LATERALE SUP.DX More informationQuantity required : 1 |
||||||
|
1 |
AP8184401 - CARENE LAT. SUP. DX NOIRE AVEC DECO More informationQuantity required : 1 |
||||||
|
2 |
AP8179266 - CARENA LATERALE SUP.SX More informationQuantity required : 1 |
||||||
|
2 |
AP8179454 - CARENA LAT.SUP.SX V.ROS.FL. More informationQuantity required : 1 |
||||||
|
2 |
AP8179464 - CARENA LAT.SUP.SX V.BIANCO APR More informationQuantity required : 1 |
||||||
|
2 |
AP8184319 - CARENAGE More informationQuantity required : 1 |
||||||
|
2 |
AP8184336 - VERKL More informationQuantity required : 1 |
||||||
|
2 |
AP8184353 - CARENE More informationQuantity required : 1 |
||||||
|
2 |
AP8184387 - VERKL More informationQuantity required : 1 |
||||||
|
2 |
AP8184402 - CARENE More informationQuantity required : 1 |
||||||
|
2 |
AP8184683 - CARENE LATERALE G.BLEUE More informationQuantity required : 1 |
||||||
|
2 |
AP8184702 - CARENE LATERALE G. SILVER More informationQuantity required : 1 |
||||||
|
3 |
AP8158128 - PUNTALE CARENA More informationQuantity required : 1 |
||||||
|
4 |
EXTRACTEUR AIR RIGHT DE FAIRING OEM PIAGGIO APRILIA 1000 RSV-2-AP8179261 More informationQuantity required : 1 |
||||||
|
4 |
AP8179353 - ESTRATTORE ARIA DX CARB. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/4/4/3/0/img/54430.jpg)
5 |
EXTRACTEUR AIR LEFT DE FAIRING OEM PIAGGIO APRILIA 1000 RSV-2-AP8179262 More informationQuantity required : 1 |
||||||
|
5 |
AP8179354 - ESTRATTORE ARIA SX CARB. More informationQuantity required : 1 |
||||||
|
6 |
AP8158126 - CARENA INTERNA DX More informationQuantity required : 1 |
||||||
|
7 |
AP8158127 - CARENA INTERNA SX More informationQuantity required : 1 |
||||||
|
8 |
AP8179389 - CARENA LATERALE INF.DX More informationQuantity required : 1 |
||||||
|
8 |
AP8184354 - CARENE More informationQuantity required : 1 |
||||||
|
8 |
AP8184388 - CARENE INF.D NOIRE More informationQuantity required : 1 |
||||||
|
8 |
AP8184684 - EMB.CARENE DROITE More informationQuantity required : 1 |
||||||
|
8 |
AP8184703 - CARENE INF.D NOIRE More informationQuantity required : 1 |
||||||
|
8 |
AP8179267 - CARENA LATERALE INF.DX More informationQuantity required : 1 |
||||||
|
8 |
AP8184328 - CARENE LATERALE D. More informationQuantity required : 1 |
||||||
|
9 |
AP8179268 - CARENA LATERALE INF.SX More informationQuantity required : 1 |
||||||
|
9 |
AP8179390 - CARENA LATERALE INF.SX More informationQuantity required : 1 |
||||||
|
9 |
AP8184329 - CARENE LATERALE G. More informationQuantity required : 1 |
||||||
|
9 |
AP8184355 - CARENE More informationQuantity required : 1 |
||||||
|
9 |
AP8184389 - CARENAGE More informationQuantity required : 1 |
||||||
|
9 |
AP8184685 - CARENE INF.G NOIRE More informationQuantity required : 1 |
||||||
|
9 |
AP8184704 - CARENE INF.G NOIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
10 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 20 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
11 |
SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
12 |
RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
13 |
RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
14 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 4 |
||||||
|
15 |
AP8117268 - PANNELLO FONOASSORBENTE SX SUP More informationQuantity required : 1 |
||||||
|
16 |
AP8117267 - PANNELLO FONOASSORBENTE DX SUP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
17 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/2/8/img/45128.JPG)
18 |
NUT SHEET METAL DZUS/QUART DE TOUR OEM PIAGGIO COMMON A LAGAMME-AP8101985 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/1/3/img/46913.jpg)
19 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2 -AP8121663- More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/0/img/71410.jpg)
20 |
WASHER PLATE (6X12) NYLON FOR FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8120622 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
21 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/0/img/71770.jpg)
22 |
RUBBER WITH INSERT (M4) OEM PIAGGIO COMMON A LA RANGE-AP8144564 More informationQuantity required : 1 |
||||||
|
23 |
AP8166881 - DECALCO ANTICALORE CAR.LAT.DX More informationQuantity required : 1 |
