Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

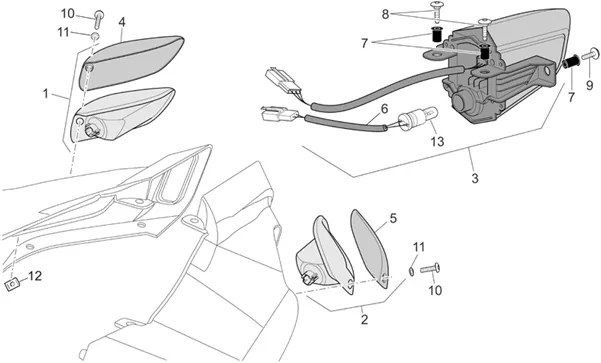

Chassis : 28.52 FEU ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.52.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/0/7/1/img/48071.jpg)
1 |
FLASHER-REAR-RIGHT "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2 -AP8127284- More informationQuantity required : 1 |
|||||||||
1 |
AP8127683 - INDICATORE DIREZIONE POST.DX More informationQuantity required : 1 |
|||||||||
|
2 |
FLASHER-REAR-LEFT "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2 -AP8127285- More informationQuantity required : 1 |
|||||||||
|
2 |
AP8127684 - INDICATORE DIREZIONE POST.SX More informationQuantity required : 1 |
|||||||||
|
3 |
893292-LAMP REAR More informationQuantity required : 1 |
|||||||||
|
3 |
893293 - FEU ARRIERE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/2/7/1/img/48271.jpg)
3 |
TAILLIGHT- "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2 -AP8127682 More informationQuantity required : 1 |
|||||||||
|
3 |
AP8127543 - FANALE POSTERIORE More informationQuantity required : 1 |
|||||||||
|
4 |
AP8127597-VETRO IND. DIR. POST. DX More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/2/img/71622.jpg)
4 |
CABOCHON DE REAR RIGHT INDICATOR OEM PIAGGIO APRILIA 1000 RSV-2, TUONO V2/MOTO-GUZZI 850-1200 NORGE-AP8127701 More informationQuantity required : 1 |
|||||||||
|
5 |
AP8127598-VETRO IND. DIR. POST. SX More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/3/img/71623.jpg)
5 |
CABOCHON DE REAR LEFT INDICATOR OEM PIAGGIO APRILIA 1000 RSV-2, TUONO V2/MOTO-GUZZI 850-1200 NORGE-AP8127702 More informationQuantity required : 1 |
|||||||||
|
6 |
AP8127599-CABLAGGIO LUCE TARGA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
7 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
8 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
9 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
|
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/3/img/71893.jpg)
10 |
SCREW BTR HEAD BOMBEE (4X16) OEM PIAGGIO COMMON A LA RANGE-AP8150493 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/1/img/71771.jpg)
11 |
WASHER NYLON (4X9X0. 8)) OEM PIAGGIO COMMON A LA RANGE-AP8144565 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
12 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 2 |
|||||||||
