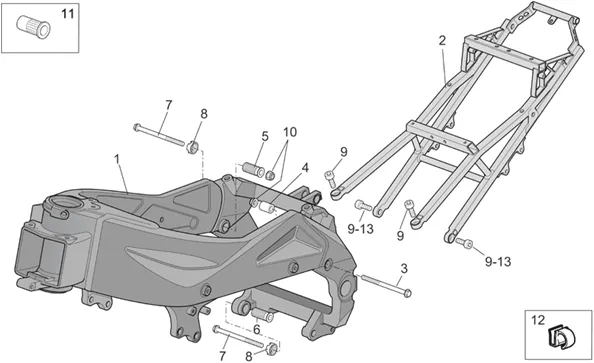

Chassis : 28.07 CHASSIS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.07.PNG)
1 |
AP8145044 - TELAIO FINITO More informationQuantity required : 1 |
||||||
|
1 |
AP8146974 - TELAIO FINITO More informationQuantity required : 1 |
||||||
|
1 |
AP8145053 - TELAIO FINITO More informationQuantity required : 1 |
||||||
|
1 |
AP8146740 - TELAIO FINITO More informationQuantity required : 1 |
||||||
|
1 |
Châssis fini |
||||||
|
1 |
AP8184394 - CHASSIS More informationQuantity required : 1 |
||||||
|
2 |
AP8146500 - REGGISELLA BIPOSTO More informationQuantity required : 1 |
||||||
|
3 |
AP8152317-SCREW FLANGE More informationQuantity required : 1 |
||||||
|
4 |
AP8121597-SPACER SUP. MOTORE More informationQuantity required : 1 |
||||||
|
5 |
AP8121996-BUSH DE REGLAGE SUP. More informationQuantity required : 1 |
||||||
|
6 |
AP8121997-BUSH DE REGLAGE INF. More informationQuantity required : 1 |
||||||
|
7 |
AP8152317-SCREW FLANGE More informationQuantity required : 1 |
||||||
|
8 |
AP8121995-BUSH FIX. ENGINE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/8/7/img/50887.jpg)
9 |
SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150469 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
10 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/7/img/71187.jpg)
11 |
RIVET PLASTIQUE FILETE (M6) OEM APRILIA COMMON A LA RANGE-AP8102544 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.jpg)
12 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8201727 More informationQuantity required : 1 |
||||||
|
13 |
AP8150542-SCREW TCC M10 X 30 More informationQuantity required : 2 |
