Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

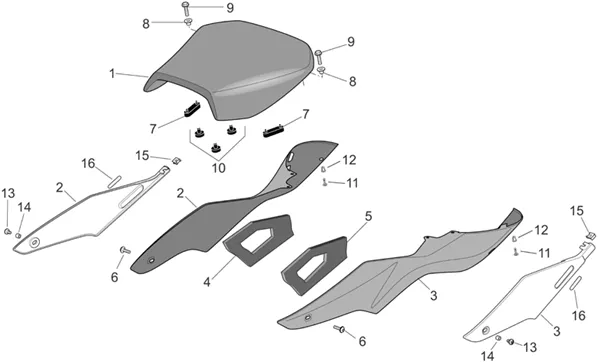

Chassis : 28.24 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.24.PNG)
1 |
AP8129319 - SELLA PILOTA More informationQuantity required : 1 |
|||||||||
|
1 |
AP8129417 - SELLA PILOTA More informationQuantity required : 1 |
|||||||||
|
1 |
AP8129420 - SELLA PILOTA More informationQuantity required : 1 |
|||||||||
|
1 |
AP8129441 - SELLA PILOTA More informationQuantity required : 1 |
|||||||||
|
1 |
AP8129473 - SELLA PILOTA ROSSA More informationQuantity required : 1 |
|||||||||
|
1 |
AP8129448 - SELLA PILOTA More informationQuantity required : 1 |
|||||||||
|
2 |
AP8184786 - FLANC D, NOIR More informationQuantity required : 1 |
|||||||||
|
2 |
AP8158139 - FIANCATA DX More informationQuantity required : 1 |
|||||||||
|
2 |
AP8158663 - FIANCATA DX More informationQuantity required : 1 |
|||||||||
|
2 |
AP8178759 - FIANCATA DX CARBONIO More informationQuantity required : 1 |
|||||||||
|
2 |
AP8179403 - FIANCATINA DX CARBONIO More informationQuantity required : 1 |
|||||||||
|
2 |
AP8179429 - FIANCATA DX More informationQuantity required : 1 |
|||||||||
|
2 |
AP8184356 - CARENAGE More informationQuantity required : 1 |
|||||||||
|
3 |
AP8178760 - FIANCATA SX CARBONIO More informationQuantity required : 1 |
|||||||||
|
3 |
AP8179402 - FIANCATINA SX CARBONIO More informationQuantity required : 1 |
|||||||||
|
3 |
AP8158140 - FIANCATA SX More informationQuantity required : 1 |
|||||||||
|
3 |
AP8158664 - FIANCATA SX More informationQuantity required : 1 |
|||||||||
|
3 |
Flanc G, noir |
|||||||||
|
3 |
AP8179430 - FIANCATA SX More informationQuantity required : 1 |
|||||||||
|
3 |
AP8184357 - CARENAGE More informationQuantity required : 1 |
|||||||||
|
4 |
AP8117236 - SPUGNA ADESIVA DX More informationQuantity required : 1 |
|||||||||
|
5 |
AP8117235-SPUGNA ADESIVA SX More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
6 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
|
6 |
AP8152458-SCREW TCCCE M5 X 15 ERGAL NERA More informationQuantity required : 2 |
|||||||||
|
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
|
7 |
AP8126701-RUBBER APPUI SEAT More informationQuantity required : 2 |
|||||||||
|
8 |
AP8221145-" BUSH EN " " T " " * " More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
9 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/9/0/img/71590.jpg)
10 |
BUTEE RUBBER DE SEAT OEM PIAGGIO COMMON A LA RANGE-AP8126702 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
11 |
RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
12 |
RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
13 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/5/img/72295.jpg)
14 |
BUSH/BUSH (5. 3X8X7. 1) OEM PIAGGIO COMMON A LA RANGE-AP8221036 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
15 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
|||||||||
|
16 |
AP8166905 - TARGHETTA FIANCATINA More informationQuantity required : 2 |
|||||||||
