Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

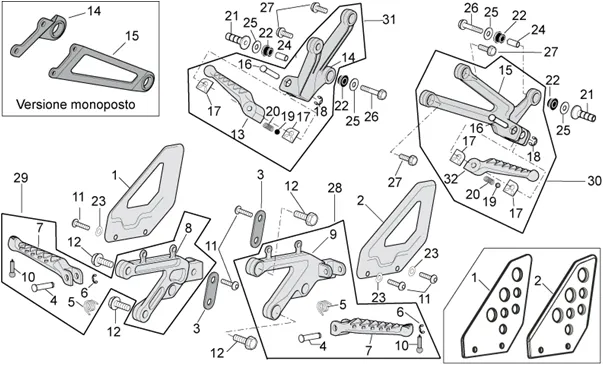

Chassis : 28.09 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.09.PNG)
1 |
AP8146503-PROT. REP.-P. PIL. DR. More informationQuantity required : 1 |
||||||
|
1 |
Protec.r-pied pil. D |
||||||
|
1 |
AP8179259 - PROTEZIONE PEDANA PILOTA DX More informationQuantity required : 1 |
||||||
|
2 |
AP8146504-PROT. REP.-P. PIL. G. More informationQuantity required : 1 |
||||||
|
2 |
Protec.r-pied pil. G |
||||||
|
2 |
AP8179260 - PROTEZIONE PEDANA PILOTA SX More informationQuantity required : 1 |
||||||
|
3 |
AP8134541-PLAQ. FIX. SIDE PANEL More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/2/img/71472.jpg)
4 |
PIVOT REST-FOOT (8X36) OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8121566 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/4/img/71454.jpg)
5 |
SPRING RETOUR FOOTREST PILOTE OEM APRILIA 660-750-900-1000-1100 SHIVER, RSV, TUONO-AP8121224 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
6 |
CLIPS/CIRCLIPS (D-8) OEM PIAGGIO COMMON A LA RANGE-AP8152409 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/1/4/4/img/50144.jpg)
7 |
PAIRE FOOTREST PILOTE OEM PIAGGIO APRILIA RSV4, RS660 2013 >-AP81468626 More informationQuantity required : 1 |
||||||
|
8 |
AP8146501-PEDANA DX PILOTA COMPLETA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/0/2/5/img/50025.jpg)
9 |
BRACKET FOOTREST PILOTE LEFT OEM APRILIA 1000-1100 RSV4 2020 <-AP81465026 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/1/0/3/img/49103.jpg)
10 |
PIVOT FRICTION FOOTREST OEM APRILIA RSV4-AP8134955 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/2/0/img/50920.jpg)
11 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150537 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
11 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 6 |
||||||
|
11 |
AP8152459 - VITE TCCCE M6 X 10 ERGAL NERA More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
12 |
SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
12 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 4 |
||||||
|
12 |
Vis tcc |
||||||
|
13 |
AP8146616-PEDANA PASSEGGERO DX More informationQuantity required : 1 |
||||||
|
14 |
AP8134786 - SUPPORTO SILENZIATORE DX More informationQuantity required : 1 |
||||||
|
14 |
AP8146566-PEDANA DX PASSEGGERO CPL. More informationQuantity required : 1 |
||||||
|
15 |
AP8134830-BRACKET SILENZIATORE SX More informationQuantity required : 1 |
||||||
|
15 |
AP8146567 - PEDANA SX PASSEGGERO CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/1/0/img/71710.jpg)
16 |
PIVOT OF REST FOOT (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8134829 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/3/img/71703.jpg)
17 |
PLATE FDC PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE-AP8134451 More informationQuantity required : 4 |
||||||
|
18 |
CLIPS/CIRCLIPS (D-8) OEM PIAGGIO COMMON A LA RANGE-AP8152409 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
19 |
BILLE BLOCAGE FOOTREST OEM PIAGGIO APRILIA DORSODURO 750-900-1200, RS 50-125, RSV-4 1000, TUONO 1000/MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE-AP8101861 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
20 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/9/3/7/img/51937.jpg)
21 |
BUTOIR/PROTECTOR EXHAUST OEM PIAGGIO APRILIA 1000 RSV-2, TUONO V2-AP8158984 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/8/img/71768.jpg)
22 |
BUSH RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144558 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
23 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/5/img/71465.jpg)
24 |
SPACER (19X12X8. 3) OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8121455 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
25 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
26 |
SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8152291 More informationQuantity required : 2 |
||||||
|
26 |
AP8152450 - VITE TCC M8 X 40 TITANIO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
27 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 4 |
||||||
|
27 |
AP8152447 - VITE TCC M8 X 20 TITANIO More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/4/0/img/51040.jpg)
27 |
SCREW BTR CHROME (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152486 More informationQuantity required : 4 |
||||||
|
28 |
AP8154069-PEDANA PILOTA COMPL. LUCIDA SX More informationQuantity required : 1 |
||||||
|
29 |
AP8154070-PEDANA PILOTA COMPL. LUCIDA DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/9/9/img/51099.jpg)
30 |
FOOTREST PASSAGE REAR LEFT COMPLETE OEM PIAGGIO APRILIA 1000 RSV-2, TUONO V2-AP8154071 More informationQuantity required : 1 |
||||||
|
31 |
FOOTREST PASSAGE REAR RIGHT COMPLETE OEM PIAGGIO APRILIA 1000 RSV-2, TUONO V2-AP8154072 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/0/6/1/img/50061.jpg)
32 |
PASSENGER FOOTREST LEFT OEM PIAGGIO RSV4 APRILIA 2011 >-AP8146617 More informationQuantity required : 1 |
