Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

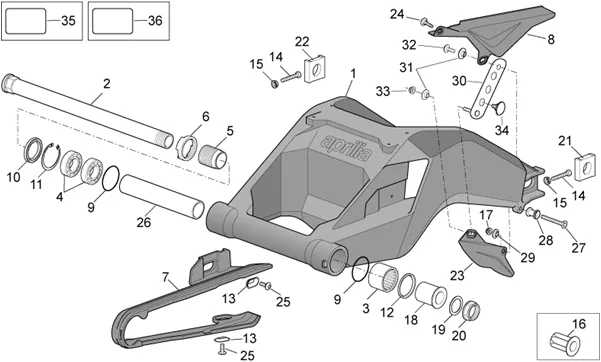

Chassis : 28.15 BRAS OSCILLANT FINI
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.15.PNG)
1 |
AP8145020 - FORCELLONE FINITO More informationQuantity required : 1 |
|||||||||
|
2 |
AP8146520-PERNO FORCELLONE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/9/img/45829.jpg)
3 |
CAGE A AIGUILLES OEM MOPED SWINGARM OEM APRILIA RSV, CAPONORD, DORSODURO, SHIVER-AP8110078 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/3/0/img/45830.jpg)
4 |
BEARING DE ARM DE SUSPENSION OEM PIAGGIO APRILIA 1000 RSV, 750-900 SHIVER, FUTURA, CAPONORD-AP8110079 More informationQuantity required : 2 |
|||||||||
|
5 |
AP8121200-BUSH DE REGLAGE More informationQuantity required : 1 |
|||||||||
|
6 |
AP8121201-BUSH PIVOT FORK More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/7/3/8/img/49738.jpg)
7 |
GUIDE CHAIN TRANSMISSION OEM APRILIA 1000 RSV 2004 > 2008-AP8144463 More informationQuantity required : 1 |
|||||||||
|
8 |
AP8158148 - CARTER CATENA More informationQuantity required : 1 |
|||||||||
|
8 |
Carter chaîne |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/8/9/img/49589.jpg)
9 |
O-RING 134 OEM MOPED SWINGARM OEM APRILIA CAPONORD, DORSODURO, RSV, SHIVER-AP8144048 More informationQuantity required : 2 |
|||||||||
|
10 |
AP8144006-BUSH D'ETANCHEITE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/8/img/46748.jpg)
11 |
CLIPS/CIRCLIPS (D = 37) OEM PIAGGIO COMMON A LA RANGE-AP8121204 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/7/3/img/49573.jpg)
12 |
BUSH D'ETANCHEITE SPINDLE OEM MOPED SWINGARM SIDE LEFT OEM APRILIA CAPONORD 1200 2015 > 2017, DORSODURO 750-900-1200 2010 > 2017, RSV4 1000 2009 > 2018-AP8144005 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/6/8/img/97168.jpg)
13 |
WASHER FOR PATIN GUIDE CHAIN OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8234020 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/2/img/71962.jpg)
14 |
SCREW REGLAGE TENSION CHAIN OEM APRILIA COMMON A LA RANGE-AP8152305 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/2/img/145822.jpg)
15 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 2 |
|||||||||
|
15 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/2/img/72142.jpg)
16 |
RIVET FILETE (M5) OEM PIAGGIO COMMON A LA RANGE-AP8201755 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
17 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
|||||||||
|
18 |
AP8121203-DOU. INT. ROD FORK More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/3/5/img/47735.jpg)
19 |
WASHER SPINDLE REAR WHEEL OEM APRILIA COMMON A LA RANGE-AP8125687 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/4/7/img/47747.jpg)
20 |
NUT REAR WHEEL OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8125763 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/6/img/97076.jpg)
21 |
INSERT/GUIDE CHAIN RIGHT OEM PIAGGIO APRILIA DORSODURO, SHIVER, RSV-2, RSV-4, TUONO-AP8144443 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/7/img/97077.jpg)
22 |
INSERT/GUIDE CHAIN RIGHT OEM PIAGGIO APRILIA DORSODURO, SHIVER, RSV-2, RSV-4, TUONO-AP8144444 More informationQuantity required : 1 |
|||||||||
|
23 |
AP8144445-CRUNA CATENA More informationQuantity required : 1 |
|||||||||
|
23 |
Galet guide-chaîne |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
24 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 1 |
|||||||||
|
24 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 1 |
|||||||||
|
24 |
AP8152458-SCREW TCCCE M5 X 15 ERGAL NERA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
25 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/7/0/img/46870.jpg)
26 |
SPACER INTERNE OEM MOPED SWINGARM OEM APRILIA COMMON A LA RANGE-AP8121570 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/0/3/img/50903.jpg)
27 |
SCREW BTR HEAD FRAISEE (6X55) OEM PIAGGIO COMMON A LA RANGE-AP8150503 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/9/8/img/71498.jpg)
28 |
BUSH OEM MOPED SWINGARM OEM APRILIA COMMON A LA RANGE-AP8121890 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
29 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 1 |
|||||||||
|
30 |
AP8154046-BRACKET CRUNA CATENA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
31 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
32 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
33 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
34 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 1 |
|||||||||
|
35 |
Décalco |
|||||||||
|
36 |
Décalco pression pneus |
|||||||||
|
36 |
AP8177792-DECAL PRESSIONE GOMME/TEN. CA More informationQuantity required : 1 |
|||||||||
