Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

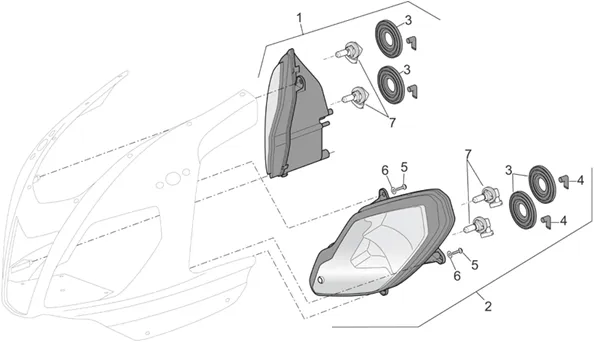

Chassis : 28.51 PHARE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.51.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/0/1/4/img/48014.jpg)
1 |
HEAD LIGHT - RIGHT "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUNO V2 -AP8127152- More informationQuantity required : 1 |
||||||
1 |
AP8127371 - FANALE ANTERIORE DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/0/7/0/img/48070.jpg)
2 |
HEAD LIGHT - LEFT "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUNO V2 -AP8127283- More informationQuantity required : 1 |
||||||
|
2 |
AP8127372 - FANALE ANTERIORE SX More informationQuantity required : 1 |
||||||
|
3 |
AP8127442-COIFFE HEADLAMP More informationQuantity required : 4 |
||||||
|
4 |
AP8127601-PIPETTA More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
5 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
5 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
6 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 4 |
