Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

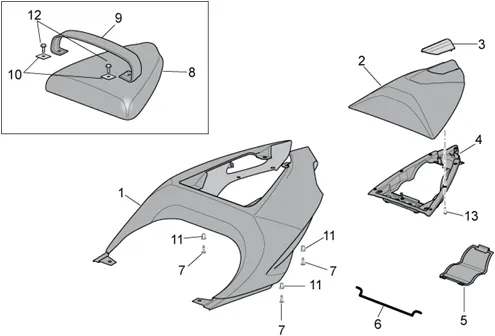

Chassis : 28.25 CARROSSERIE AR. - QU.CAR I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.25.PNG)
1 |
AP8158142 - CODONE V. More informationQuantity required : 1 |
||||||
|
1 |
AP8158665 - CODONE V. More informationQuantity required : 1 |
||||||
|
1 |
AP8178031 - CODONE V.ROSSO FLUO More informationQuantity required : 1 |
||||||
|
1 |
Queue de carenage, trans. |
||||||
|
1 |
AP8178906 - CODONE V. More informationQuantity required : 1 |
||||||
|
1 |
AP8178946 - CODONE V.ROSSO FLUO More informationQuantity required : 1 |
||||||
|
1 |
AP8178960 - CODONE V.SILVER MIRROR More informationQuantity required : 1 |
||||||
|
2 |
AP8178032 - COPRISELLINO V.ROSSO FLUO More informationQuantity required : 1 |
||||||
|
2 |
Couvre-selle, trans. |
||||||
|
2 |
AP8178174 - COPRISELLINO V.ROSSO FLUO More informationQuantity required : 1 |
||||||
|
2 |
AP8158143-COPRISELLINO V. More informationQuantity required : 1 |
||||||
|
2 |
AP8158666 - COPRISELLINO V.GRIGIO M. More informationQuantity required : 1 |
||||||
|
2 |
AP8178179 - COPRISELLINO V.NERO D. More informationQuantity required : 1 |
||||||
|
2 |
AP8178182 - COPRISELLINO V.GRIGIO MAGN. More informationQuantity required : 1 |
||||||
|
2 |
AP8178860 - COPRISELLINO V.NERO D. More informationQuantity required : 1 |
||||||
|
2 |
AP8178947 - COPRISELLINO V.ROSSO FLUO More informationQuantity required : 1 |
||||||
|
2 |
AP8178961 - COPRISELLINO V.SILVER MIRROR More informationQuantity required : 1 |
||||||
|
2 |
KIT COPRISELLINO V.ROSSO FLUO |
||||||
|
2 |
KIT COPRISELLINO V.NERO APR. |
||||||
|
2 |
KIT COPRISELLINO V.SILVER MIR. |
||||||
|
3 |
AP8158912-VETRO COPRISELLINO More informationQuantity required : 1 |
||||||
|
4 |
AP8129321 - BASE COPRISELLINO More informationQuantity required : 1 |
||||||
|
5 |
AP8158138-SPORTELLINO COPRISELLINO More informationQuantity required : 1 |
||||||
|
6 |
AP8134396-ROD SUPP. TANK More informationQuantity required : 1 |
||||||
|
7 |
Axe de fixation; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
7 |
RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616 More informationQuantity required : 4 |
||||||
|
8 |
AP8129330 - SELLA PASSEGGERO More informationQuantity required : 1 |
||||||
|
9 |
AP8129424 - CINGHIA SELLINO PASSEGGERO More informationQuantity required : 1 |
||||||
|
9 |
AP8129450 - CINGHIA SELLINO PASSEGGERO More informationQuantity required : 1 |
||||||
|
9 |
AP8129331-CINGHIA SELLINO PASSEGGERO More informationQuantity required : 1 |
||||||
|
9 |
AP8129422 - CINGHIA SELLINO PASSEGGERO More informationQuantity required : 1 |
||||||
|
10 |
AP8134654 - PLAQUETTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
11 |
RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
12 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8152283 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
13 |
SCREW CRUCIFORME (3. 9X10) TARAUD STAINLESS STEEL FOR PLASTIQUE OEM PIAGGIO COMMON A LA RANGE-AP8150444 More informationQuantity required : 7 |
