Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

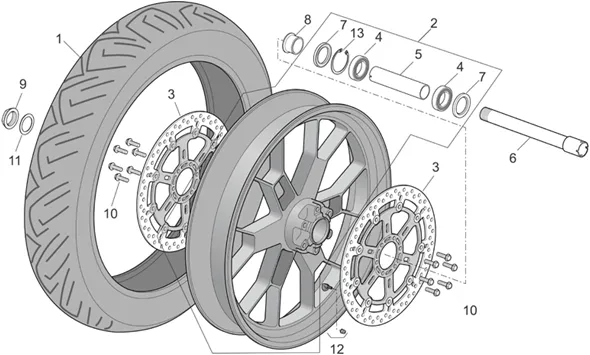

Chassis : 28.42 ROUE AV.FACTORY - DREAM I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.42.PNG)
1 |
PNEU PIRELLI 120/70-ZR17" |
||||||
|
1 |
AP8109284 - PNEU AV PIRELLI 120/70 ZR 17'' More informationQuantity required : 1 |
||||||
|
2 |
896547 - KIT ROUES ARRIERE / AVANT More informationQuantity required : 1 |
||||||
|
2 |
893103 - ROUE AVANT More informationQuantity required : 1 |
||||||
|
2 |
896546 - KIT ROUE More informationQuantity required : 1 |
||||||
|
2 |
Front wheel, magnesium RED |
||||||
|
2 |
AP8128204 - ROUE 3,5"X17" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/4/5/1/img/48451.jpg)
2 |
RIM/FRONT WHEEL 3, 5''X17''BLACK OEM APRILIA 750-1200 DORSODURO, 1000 RSV-2, RSV-4, 750 SHIVER-AP8128228 More informationQuantity required : 1 |
||||||
|
3 |
AP8133781 - DISCO FRENO ANT.D.320 More informationQuantity required : 2 |
||||||
|
3 |
AP8113926 - DISQUE FREIN AVANT; More informationQuantity required : 2 |
||||||
|
4 |
BEARING (25X47X12) DE FRONT WHEEL OEM APRILIA/MOTO GUZZI-AP8110094 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/8/6/img/71586.jpg)
5 |
SPACER INTERNE DE FRONT WHEEL OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4, TUONO-AP8125843 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/4/img/69644.jpg)
6 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV, TUONO, 1200 DORSODURO, CAPONORD -85263R More informationQuantity required : 1 |
||||||
|
7 |
BUSH ETANCHEITE FRONT WHEEL (30X47X7) OEM APRILIA/MOTO GUZZI-AP8125841 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/5/img/71575.jpg)
8 |
SPACER EXTERIEURE RIGHT FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8125728 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/8/4/img/50984.jpg)
9 |
NUT DE WHEEL OEM APRILIA COMMON A LA RANGE MOTO-AP8152335 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
10 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
11 |
WASHER (25. 2X36X1) WHEEL SPINDLE FRONT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8152323 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/7/img/71237.jpg)
12 |
VALVE TUBELESS COUDEE 90- OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8104728 More informationQuantity required : 1 |
||||||
|
13 |
CLIPS/CIRCLIPS OEM APRILIA (D47) COMMON A LA RANGE-AP8125842 More informationQuantity required : 1 |
