Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

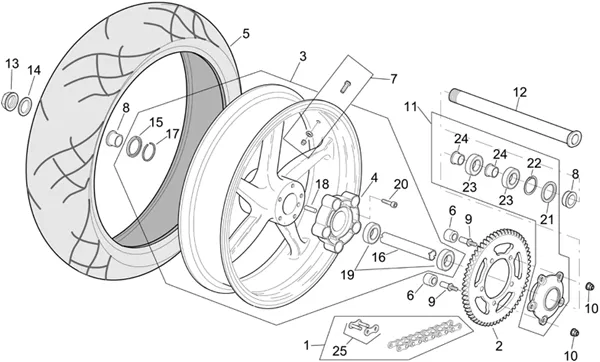

Chassis : 28.46 ROUE AR.VR.R
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.46.PNG)
1 |
859753 - CHA?NE+MAIL.JONCTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/7/4/0/img/45740.jpg)
2 |
AP8107145 - CORONA Z=40 More informationQuantity required : 1 |
||||||
|
3 |
Roue arrière nue |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/6/0/8/img/108608.jpg)
4 |
RUBBER MOUNT DE REAR WHEEL OEM PIAGGIO APRILIA 750-900-1200 DORSODURO, 1000 RSV-2, RSV-4, TUONO, 1200 CAPONORD-2B000639R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/0/5/img/72805.jpg)
6 |
RUBBER MOUNT DE COURONNE REAR OEM PIAGGIO APRILIA 1000 RSV, TUONO, 1200 CAPONORD, DORSODURO, 750 SHIVER, 850 SRV-B043317 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/9/img/71159.jpg)
7 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8101744 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/5/3/img/46753.jpg)
8 |
SPACER DE REAR WHEEL OEM APRILIA 750 SHIVER, 900 DORSODURO, 1000 RSV-2, FALCO, TUONO, 1200 CAPONORD-AP8121225 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/5/3/img/72853.jpg)
9 |
PIVOT/SCREW OF COURONNE REAR OEM PIAGGIO APRILIA 1000 RSV, TUONO, 1200 CAPONORD, DORSODURO, 750 SHIVER, 850 SRV-B045033 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
10 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8150436 More informationQuantity required : 5 |
||||||
|
11 |
AP81257305-DOOR-COURONNE CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/6/1/img/62561.jpg)
12 |
SPINDLE REAR WHEEL OEM PIAGGIO APRILIA 750-900-1200 DORSODURO 2008 > 2018, 750-900 SHIVER 2007 > 2018-B0454226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/8/img/71968.jpg)
13 |
NUT DE REAR WHEEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8152324 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
14 |
WASHER (25. 2X36X1) WHEEL SPINDLE FRONT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8152323 More informationQuantity required : 1 |
||||||
|
15 |
AP8125786-BUSH D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
16 |
AP8128072 - DISTANZIALE INT. More informationQuantity required : 1 |
||||||
|
17 |
AP8125788-BUSH SEEGER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/8/4/img/50884.jpg)
18 |
GOUPILLE (10X20) OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8150463 More informationQuantity required : 1 |
||||||
|
19 |
BEARING 6205 2RS 25X52X15 DE REAR WHEEL OEM APRILIA RSV 2/4 SHIVER 750-AP8106806 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
20 |
SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150195 More informationQuantity required : 5 |
||||||
|
21 |
AP8121213-BUSH D'ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/9/img/46749.jpg)
22 |
CLIPS/CIRCLIPS (D55) OEM PIAGGIO COMMON A LA RANGE-AP8121212 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/3/1/img/45831.jpg)
23 |
BEARING (30X55X13) OEM APRILIA COMMON A LA RANGE-AP8110081 More informationQuantity required : 2 |
||||||
|
24 |
AP8125732-SPACER GASKET ELAST. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/6/7/img/40667.jpg)
25 |
CLIP QUICK OEM APRILIA RSV2, RSV4,-859754 More informationQuantity required : 1 |
