Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

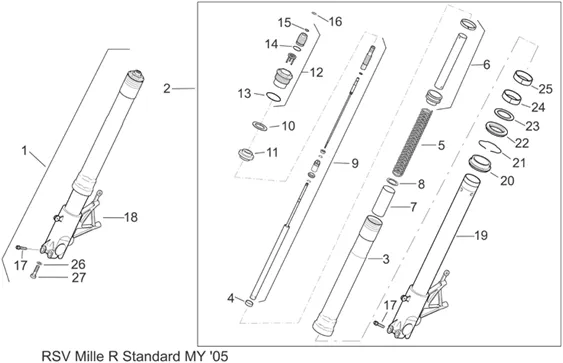

Chassis : 28.14 FOURCHE AV. III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.14.PNG)
1 |
AP8163451 - STELO DX FORCELLA RADIALE More informationQuantity required : 1 |
||||||
|
2 |
AP8163452 - STELO SX FORCELLA RADIALE More informationQuantity required : 1 |
||||||
|
3 |
Fourreau |
||||||
|
4 |
AP8123810-BUSH MOUNTING PUMP More informationQuantity required : 2 |
||||||
|
5 |
AP8163495-MOLLA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/5/0/img/71550.jpg)
6 |
TUBE DE PRECHARGE FORK OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4, TUNO, FALCO 2010 </MOTO-GUZZI 850-1100-1200 GRISO-AP8123832 More informationQuantity required : 2 |
||||||
|
7 |
AP8123835-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/5/4/img/71554.jpg)
8 |
WASHER DE FORK FRONT OEM APRILIA 1000 RSV 1998 > 2010-AP8123836 More informationQuantity required : 2 |
||||||
|
9 |
AP8163496 - POMPANTE COMPLETO More informationQuantity required : 2 |
||||||
|
10 |
AP8123816-WASHER More informationQuantity required : 2 |
||||||
|
11 |
AP8123815-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/3/7/img/71537.jpg)
12 |
AP8123817 - BOUCHON FOURREAU CPL. More informationQuantity required : 2 |
||||||
|
13 |
AP8123834-O-RING More informationQuantity required : 2 |
||||||
|
14 |
AP8123819-O-RING More informationQuantity required : 2 |
||||||
|
15 |
AP8123820-O-RING More informationQuantity required : 2 |
||||||
|
16 |
AP8123821-BUSH OF BUTEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
17 |
SCREW FLANGE TH (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8152290 More informationQuantity required : 4 |
||||||
|
18 |
AP8163492 - TIGE+PORTE-ROUE D More informationQuantity required : 1 |
||||||
|
19 |
AP8163493 - TIGE+PORTE-ROUE G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/4/3/img/71543.jpg)
20 |
PROTECTOR-POUSSIERE OEM PIAGGIO GRISO 2005 > 2013, 1000 RSV2 1998 > 2008 MOTO GUZZI-AP8123824 More informationQuantity required : 2 |
||||||
|
21 |
AP8123806 - BAGUE SEEGER; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/4/4/img/71544.jpg)
22 |
OIL SEAL (43X54X11) DE FORK OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4, TUONO, FALCO, FUTURA/MOTO-GUZZI 850-1100-1200 GRISO-AP8123825 More informationQuantity required : 2 |
||||||
|
23 |
856043-CIRCLIPS More informationQuantity required : 2 |
||||||
|
24 |
890397 - DOUILLE GUIDAGE More informationQuantity required : 2 |
||||||
|
25 |
890398 - DOUILLE DE COULISSEMENT More informationQuantity required : 2 |
||||||
|
26 |
AP8123811-WASHER SPECIALE More informationQuantity required : 2 |
||||||
|
27 |
AP8123812-SCREW More informationQuantity required : 2 |
