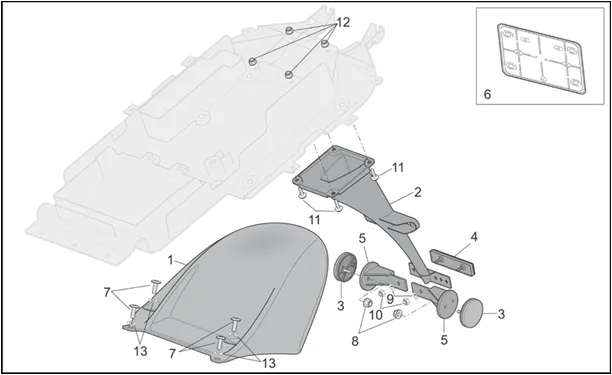

Chassis : 28.28 GARDE-BOUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.28.PNG)
1 |
AP8126948 - PARAFANGO POST. More informationQuantity required : 1 |
|||||||||
|
1 |
AP8126983 - PARAFANGO POST. More informationQuantity required : 1 |
|||||||||
|
1 |
Garde-boue AR carb. |
|||||||||
|
2 |
AP8126949 - PORTATARGA More informationQuantity required : 1 |
|||||||||
|
2 |
AP8156087 - PORTATARGA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/5/img/72325.jpg)
3 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE-AP8224164 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.jpg)
4 |
AP8112916-CATADIOPTRE LAMP REAR More informationQuantity required : 1 |
|||||||||
|
5 |
AP8134783-BRACKET CATADIOTTRO More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/1/img/71801.jpg)
6 |
BRACKET DE PLATE IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET MAXI SCOOTER APRILIA-AP8149034 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
7 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
7 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 4 |
|||||||||
|
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 4 |
|||||||||
|
7 |
AP8152458-SCREW TCCCE M5 X 15 ERGAL NERA More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
8 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
9 |
WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
10 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
11 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
12 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
13 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 4 |
|||||||||
