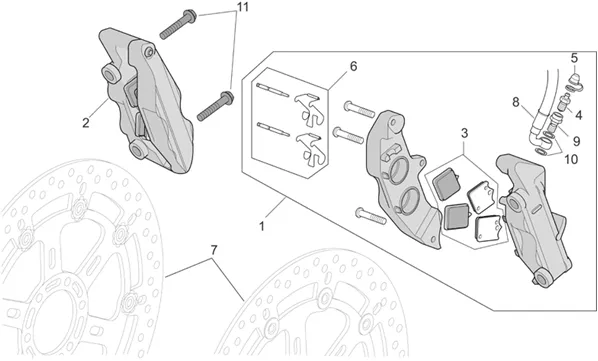

Chassis : 28.45 PINCE FREIN AV II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.45.PNG)
1 |
AP8133590 - MACHOIRE FREIN AV GAUCHE OR; More informationQuantity required : 1 |
||||||
|
2 |
AP8133591 - MACHOIRE FREIN AV G OR; More informationQuantity required : 1 |
||||||
|
3 |
AP8133592 - PLAQUETTES 4 MRC.; More informationQuantity required : 2 |
||||||
|
4 |
AP8133595-PURGE AIR More informationQuantity required : 2 |
||||||
|
5 |
AP8113070-CAPUCHON RENIFLARD More informationQuantity required : 2 |
||||||
|
6 |
AP8133593 - GOUJON+RESSORT PINCE; More informationQuantity required : 2 |
||||||
|
7 |
AP8113926 - DISQUE FREIN AVANT; More informationQuantity required : 2 |
||||||
|
7 |
AP8133781 - DISCO FRENO ANT.D.320 More informationQuantity required : 2 |
||||||
|
8 |
Tube frein AV |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/5/4/img/71654.jpg)
9 |
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" MOTO-GUZZI BREVA, STELVIO, GRISO, NORGE, SPORT, BELLAGIO -AP8133597 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
10 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/3/img/71983.jpg)
11 |
SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152414 More informationQuantity required : 4 |
