Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008 APRILIA

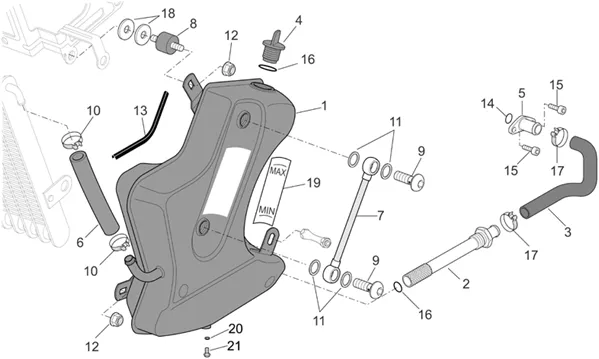

Chassis : 28.36 RÉSERVOIR HUILE
Réservoir huile
Search
AP8158120 - SERBATOIO OLIO

1
P2R reference P2R reference 51513
Maker reference Maker reference AP8158120

AP8158120 - SERBATOIO OLIO

More information

Quantity required : 1

AP8168978 - SERBATOIO OLIO

1
P2R reference P2R reference 53484
Maker reference Maker reference AP8168978

AP8168978 - SERBATOIO OLIO

More information

Quantity required : 1

OIL FILTER "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, CAPONORD -AP8102828

2
P2R reference P2R reference 71201
Maker reference Maker reference AP8102828

OIL FILTER "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, CAPONORD -AP8102828

More information

Quantity required : 1

PIPE-FROM OIL TANK TO OIL FILTER SCREEN "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2 -AP8144090-

3
P2R reference P2R reference 49604
Maker reference Maker reference AP8144090

HOSE OIL ENTRE CREPINE ET TANK OEM PIAGGIO APRILIA 1000 RSV-2, TUONO V2-AP8144090

More information

Quantity required : 1

OIL TANK CAP "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO, FUTURA, FALCO, CAPONORD -AP8102618

4
P2R reference P2R reference 45193
Maker reference Maker reference AP8102618

OIL TANK CAP "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO, FUTURA, FALCO, CAPONORD -AP8102618

More information

Quantity required : 1

AP8106387 - TUYAU HUILE

5
P2R reference P2R reference 45524
Maker reference Maker reference AP8106387

AP8106387 - TUYAU HUILE

More information

Quantity required : 1

PIPE -2B006560-

6
P2R reference P2R reference 45526
Maker reference Maker reference AP8106389

HOSE-2B006560

More information

Quantity required : 2

AP8144200 - TUYAU NIVEAU HUILE;

7
P2R reference P2R reference 49645
Maker reference Maker reference AP8144200

AP8144200 - TUYAU NIVEAU HUILE;

More information

Quantity required : 1

RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-AP8144061

8
P2R reference P2R reference 49595
Maker reference Maker reference AP8144061

RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-AP8144061

More information

Quantity required : 3

AP8121409 - VIS TUYAU HUILE

9
P2R reference P2R reference 71462
Maker reference Maker reference AP8121409

AP8121409-SCREW HOSE OIL

More information

Quantity required : 2

CLAMP CLIC (17, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8102349

10
P2R reference P2R reference 71172
Maker reference Maker reference AP8102349

CLAMP CLIC (17, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8102349

More information

Quantity required : 2

WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004

11
P2R reference P2R reference 71283
Maker reference Maker reference AP8113004

WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004

More information

Quantity required : 4

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

12
P2R reference P2R reference 71958
Maker reference Maker reference AP8152299

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

More information

Quantity required : 2

AP8144606 - GUARNIZIONE IN GOMMA 10X5

13
P2R reference P2R reference 71772
Maker reference Maker reference AP8144606

AP8144606-GUARNIZIONE IN GOMMA 10X5

More information

Quantity required : 1

AP8120196 - JOINT TORIQUE

14
P2R reference P2R reference 163572
Maker reference Maker reference AP8120196

AP8120196 - JOINT TORIQUE

More information

Quantity required : 1

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137

15
P2R reference P2R reference 71824
Maker reference Maker reference AP8150137

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137

More information

Quantity required : 2

O-RING GRIP LEFT OEM APRILIA COMMON A LA RANGE-AP8120190

16
P2R reference P2R reference 97063
Maker reference Maker reference AP8120190

O-RING GRIP LEFT OEM APRILIA COMMON A LA RANGE-AP8120190

More information

Quantity required : 2

CLAMP CLIC (20X8) OEM PIAGGIO COMMON A LA RANGE-AP8102786

17
P2R reference P2R reference 71200
Maker reference Maker reference AP8102786

CLAMP CLIC (20X8) OEM PIAGGIO COMMON A LA RANGE-AP8102786

More information

Quantity required : 2

WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015

18
P2R reference P2R reference 71808
Maker reference Maker reference AP8150015

WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015

More information

Quantity required : 6

AP8167560 - DECALCO LIVELLO OLIO

19
P2R reference P2R reference 52888
Maker reference Maker reference AP8167560

AP8167560-DECAL LIVELLO OIL

More information

Quantity required : 1

WASHER PLATE (8X16X1, 5) OEM PIAGGIO COMMON A LA RANGE-AP8121862

20
P2R reference P2R reference 97070
Maker reference Maker reference AP8121862

WASHER PLATE (8X16X1, 5) OEM PIAGGIO COMMON A LA RANGE-AP8121862

More information

Quantity required : 1

SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285

21
P2R reference P2R reference 71947
Maker reference Maker reference AP8152285

SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285

More information

Quantity required : 1
