Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

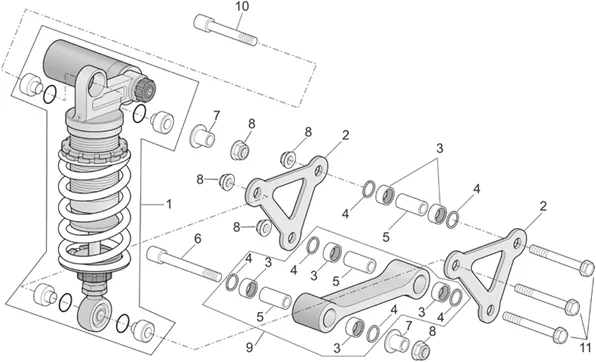

Chassis : 28.16 BIELLETTE ET DER. AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.16.PNG)
1 |
AP8163065 - AMMORTIZZATORE More informationQuantity required : 1 |
||||||
|
1 |
AP8163125 - AMMORTIZZATORE More informationQuantity required : 1 |
||||||
|
1 |
KIT AMMORTIZZATORE POSTERIORE |
||||||
|
1 |
AP8795042 - KIT AMMORTIZZATORE POSTERIORE More informationQuantity required : 1 |
||||||
|
2 |
AP8146557 - BIELLA DOPPIA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/3/img/45823.jpg)
3 |
CAGE A AIGUILLE ARTICULATION ARM SUSPENSION OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4, TUONO, FUTURA, 125 RX, SX-AP8110065 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/0/img/71270.jpg)
4 |
OIL SEAL (18X24X3) OEM PIAGGIO COMMON A LA RANGE-AP8110068 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/0/3/0/img/50030.jpg)
5 |
SPACER L36 INNER 10 OEM PIAGGIO COMMON A LA RANGE-AP8146518 More informationQuantity required : 3 |
||||||
|
6 |
AP8152412-SCREW TCEI M10 X 72 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/9/img/71439.jpg)
7 |
BUSH EN T (D10) OEM PIAGGIO COMMON A LA RANGE-AP8121155 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
8 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 6 |
||||||
|
9 |
AP81465164-BIELLE SIMPLE COMPLETE More informationQuantity required : 1 |
||||||
|
10 |
AP8152411-SCREW TCEI M10 X 59 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/0/6/img/51006.jpg)
11 |
SCREW FLANGE TH (10X61) OEM PIAGGIO COMMON A LA RANGE-AP8152413 More informationQuantity required : 3 |
