Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

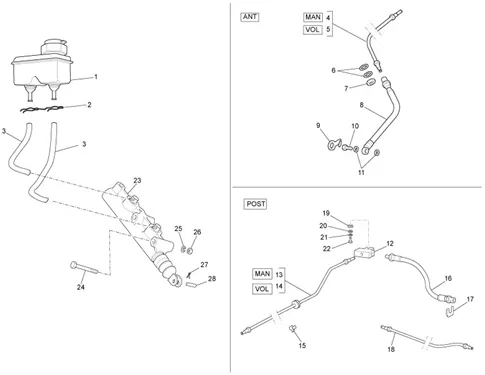

Transmisisons : 05.04 SYSTEME DE FREINAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_05.04_20251008101735.PNG)
1 |
252884 TANK OIL More informationQuantity required : 1 |
||||||
|
2 |
126135 FOURCHETTE More informationQuantity required : 2 |
||||||
|
3 |
1261363 TUBE TANK More informationQuantity required : 2 |
||||||
|
4 |
229284 HOSE More informationQuantity required : 1 |
||||||
|
5 |
253516 HOSE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/4/img/65654.jpg)
6 |
WASHER PLATE (16. 2X24X1. 4) OEM PIAGGIO COMMON A LA RANGE-048197 More informationQuantity required : 2 |
||||||
|
7 |
021216 NUT S02121600 More informationQuantity required : 1 |
||||||
|
8 |
246636 TUBE FLEXIBLE More informationQuantity required : 1 |
||||||
|
9 |
247975 PLATE More informationQuantity required : 1 |
||||||
|
10 |
127863 SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
11 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 2 |
||||||
|
12 |
136371 FITTING More informationQuantity required : 1 |
||||||
|
13 |
229285 HOSE More informationQuantity required : 1 |
||||||
|
14 |
253517 HOSE BRAKE More informationQuantity required : 1 |
||||||
|
15 |
179013-SPRING More informationQuantity required : 2 |
||||||
|
16 |
174524 TUBE More informationQuantity required : 2 |
||||||
|
17 |
136916-PLATE More informationQuantity required : 2 |
||||||
|
18 |
177936 TUBE BRAKE REAR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
19 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
20 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
21 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
22 |
SCREW TH (6X25) OEM PIAGGIO COMMON A LA RANGE-031092 More informationQuantity required : 1 |
||||||
|
23 |
BRAKE MASTER CYLINDER OEM PIAGGIO THREE-WHEELER APE TM 703 1997 > 2016-2495205 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/0/7/img/110507.jpg)
24 |
SCREW TH (8X55) OEM PIAGGIO COMMON A LA RANGE-030077 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/3/img/63843.jpg)
25 |
WASHER SPRING (8X17) OEM PIAGGIO COMMON A LA RANGE-006978 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/3/5/img/114035.jpg)
26 |
NUT BORGNE (M8) OEM PIAGGIO COMMON A LA RANGE-658842 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/2/img/63782.jpg)
27 |
GOUPILLE OEM PIAGGIO COMMON A LA RANGE-003208 More informationQuantity required : 1 |
||||||
|
28 |
074451 PIVOT More informationQuantity required : 1 |
