Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

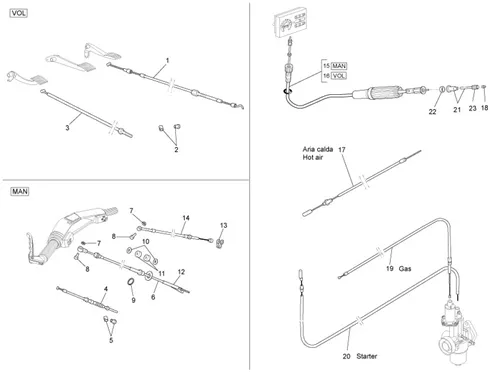

Transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_05.03_20251008101729.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/8/4/1/img/115841.jpg)
1 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 2008 > 2016 WITH VOLANT-611643 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/9/img/66349.jpg)
2 |
NUT DE REGLAGE CABLE CLUTCH OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-402384 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/7/8/9/img/115789.jpg)
3 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 2008 > 2016 WITH VOLANT-611641 More informationQuantity required : 1 |
||||||
4 |
CABLE/CONTROL/TRANSMISSION THROTTLE OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 2008 > 2016 WITH HANDLEBAR-B026121 More informationQuantity required : 1 |
||||||
|
5 |
NUT DE REGLAGE CABLE CLUTCH OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-402384 More informationQuantity required : 1 |
||||||
|
6 |
CABLE/CONTROL/TRANSMISSION DE BOX OF SPEED OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 1989 > WITH HANDLEBAR-197097 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/7/img/63797.jpg)
7 |
CLIPS/CIRCLIPS DIAMETRE 5MM OEM PIAGGIO COMMON A LA RANGE-005965 More informationQuantity required : 2 |
||||||
|
8 |
177133-SPINDLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/9/img/63799.jpg)
9 |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-005970 More informationQuantity required : 1 |
||||||
|
10 |
197101-WASHER More informationQuantity required : 2 |
||||||
|
11 |
197100 RUBBER MOUNT More informationQuantity required : 2 |
||||||
|
12 |
193836 PROTECTOR More informationQuantity required : 1 |
||||||
|
13 |
133439 ELEMENT More informationQuantity required : 1 |
||||||
|
14 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 2008 > 2016 WITH HANDLEBAR-658204 More informationQuantity required : 1 |
||||||
|
15 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 2008 > 2016 WITH HANDLEBAR-658133 More informationQuantity required : 1 |
||||||
|
16 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 2008 > 2016 WITH VOLANT-658134 More informationQuantity required : 1 |
||||||
|
17 |
214165 TRANS CHAUFFAGE More informationQuantity required : 1 |
||||||
|
18 |
0084402 PIECE OF PRESSURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/8/5/img/114685.jpg)
19 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE (COTE CARBU) OEM PIAGGIO THREE-WHEELER APE FUEL CAR 1972 > 1986, P501, P601, TM 703 1989 > 2016-224979 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/3/0/2/img/116302.jpg)
20 |
CABLE/CONTROL/TRANSMISSION DE STARTER OEM PIAGGIO THREE-WHEELER APE FUEL P501, P601, TM 703 1989 > 2016-214168 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/5/9/img/113259.jpg)
21 |
OIL SEAL (6X19X7) SPROCKET KM OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >, CLASSIC 2014 >, 50 2T 1980 >, TM 703 FUEL-1A023425 More informationQuantity required : 1 |
||||||
|
22 |
117401 BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/3/2/2/img/115322.jpg)
23 |
SPROCKET DE INSTRUMENT CLUSTER OEM PIAGGIO THREE-WHEELER APE CLASSIC 2014 >/TM 703 FUEL-117404 More informationQuantity required : 1 |
