Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

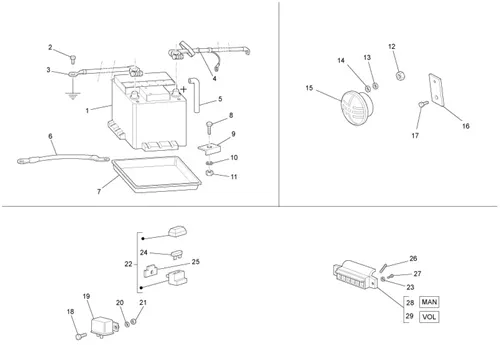

Installation électrique : 06.05 RELAIS - BATTERIE - AVERTISSEUR SONORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_06.05_20251008101811.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/4/6/4/img/120464.jpg)
1 |
BATTERY 12V 40 AH "PIAGGIO GENUINE PART" 50 APE -600697M More informationQuantity required : 1 |
||||||
2 |
BOULON |
||||||
|
3 |
189940 CABLE NEGATIF More informationQuantity required : 1 |
||||||
|
4 |
189885 CABLE POSITIF More informationQuantity required : 1 |
||||||
|
5 |
645581 HOSE CARBU More informationQuantity required : 1 |
||||||
|
6 |
127790 MOUNTING CABLE DE MASSE More informationQuantity required : 1 |
||||||
|
7 |
290102 CUVE BATTERY More informationQuantity required : 1 |
||||||
|
8 |
290103 - VIS More informationQuantity required : 1 |
||||||
|
9 |
611610 SQUADRETTA FIS More informationQuantity required : 1 |
||||||
|
10 |
013755-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
11 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/3/5/img/114035.jpg)
12 |
NUT BORGNE (M8) OEM PIAGGIO COMMON A LA RANGE-658842 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
13 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
14 |
WASHER EVENTAIL (8. 3X14) OEM PIAGGIO COMMON A LA RANGE-012540 More informationQuantity required : 1 |
||||||
|
15 |
581405 CLAXON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/1/8/img/112118.jpg)
16 |
BRACKET AVERTISSEUR OEM PIAGGIO THREE-WHEELER APE TM 703 1997 >-256285 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
17 |
SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
18 |
SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088 More informationQuantity required : 2 |
||||||
|
19 |
1E000371 RELAIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
20 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
21 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206 More informationQuantity required : 1 |
||||||
|
22 |
290859 - PORTE FUSIBLES More informationQuantity required : 1 |
||||||
|
23 |
003055-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
24 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-290860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/2/img/66242.jpg)
25 |
BRACKET DOOR FUSIBLE OEM PIAGGIO COMMON A LA RANGE-290405 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/0/4/img/65604.jpg)
26 |
FUSE ROUND 8A OEM PIAGGIO COMMON A LA RANGE-0249672 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/5/img/63855.jpg)
27 |
SCREW PARKER (4. 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008455 More informationQuantity required : 2 |
||||||
|
28 |
127619 PLATE A BORNES More informationQuantity required : 1 |
||||||
|
29 |
125322 BORNE More informationQuantity required : 1 |
