Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015 PIAGGIO VU

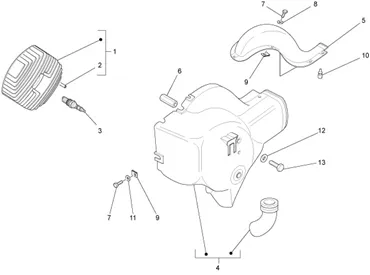

Moteur : 01.12 COUVERCLE CULASSE
Couvercle culasse
Search
2886712 - CULASSE

1
P2R reference P2R reference 122434
Maker reference Maker reference 2886712

2886712 CYLINDER HEAD

More information

Quantity required : 1

RENIFLARD

2
P2R reference P2R reference
Maker reference Maker reference 162391

RENIFLARD

SPARK PLUG CHAMPION RL78C OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018, TM 703 FUEL 2000 > 2016-438049

3
P2R reference P2R reference 113276
Maker reference Maker reference 438049

SPARK PLUG CHAMPION RL78C OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018, TM 703 FUEL 2000 > 2016-438049

More information

Quantity required : 1

COOLER COVER "PIAGGIO GENUINE PART" APE TM 703 -231308-

4
P2R reference P2R reference 119656
Maker reference Maker reference 231308

COVER/COIFFE DE COOLING OEM PIAGGIO THREE-WHEELER APE FUEL TM 703-231308

More information

Quantity required : 1

831944 - SCATOLA CHIUSU

5
P2R reference P2R reference 117078
Maker reference Maker reference 831944

831944 - SCATOLA CHIUSU

More information

Quantity required : 1

244998 - ECROU

6
P2R reference P2R reference 114453
Maker reference Maker reference 244998

244998 NUT

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (4. 5X18) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008987

7
P2R reference P2R reference 110427
Maker reference Maker reference 0089875

SCREW AUTOTARAUDEUSE (4. 5X18) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008987

More information

Quantity required : 8

013754 - RONDELLE S01375400

8
P2R reference P2R reference 65357
Maker reference Maker reference 0137545

013754-WASHER S01375400

More information

Quantity required : 7

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-CM017414

9
P2R reference P2R reference 111156
Maker reference Maker reference CM017414

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-CM017414

More information

Quantity required : 4

195700 - TAMPON

10
P2R reference P2R reference 65819
Maker reference Maker reference 195700

195700 - TAMPON

More information

Quantity required : 1

WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307

11
P2R reference P2R reference 65664
Maker reference Maker reference 0783075

WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307

More information

Quantity required : 1

WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968

12
P2R reference P2R reference 63839
Maker reference Maker reference 0069685

WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968

More information

Quantity required : 1

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

13
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

More information

Quantity required : 1
