Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

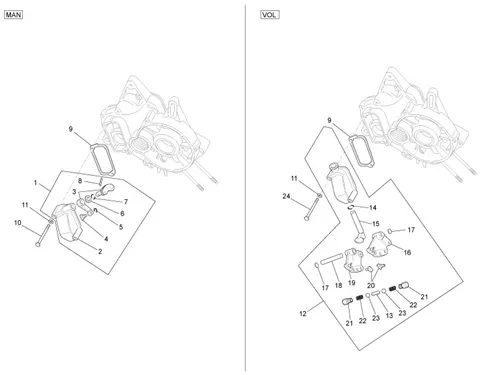

Moteur : 01.32 LEVIER DE LA BOITE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_01.32_20251008101300.PNG)
1 |
2212785 BRACKET CONTROL STARTER More informationQuantity required : 1 |
||||||
|
2 |
Boîte de vitesses |
||||||
|
3 |
2212785 BRACKET CONTROL STARTER More informationQuantity required : 1 |
||||||
|
4 |
ANCRAGE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/7/img/63797.jpg)
5 |
CLIPS/CIRCLIPS DIAMETRE 5MM OEM PIAGGIO COMMON A LA RANGE-005965 More informationQuantity required : 1 |
||||||
|
6 |
006026 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/0/img/63830.jpg)
7 |
O-RING (9X12. 5X1. 7) OEM PIAGGIO THREE-WHEELER APE TM 703 FUEL, PX125 VESPA-006708 More informationQuantity required : 1 |
||||||
|
8 |
008835 GOUPILLE ELASTIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/9/2/img/111392.jpg)
9 |
GASKET BOX OF SPEED OEM PIAGGIO THREE-WHEELER APE FUEL TM 703, P501, P601-220124 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/7/1/img/110571.JPG)
10 |
BOLT SERRAGE (7X60) OEM PIAGGIO-015561 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/7/img/65417.jpg)
11 |
WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407 More informationQuantity required : 2 |
||||||
|
12 |
8492845 SECTEUR CV More informationQuantity required : 1 |
||||||
|
13 |
015656 SCREW S01565600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/2/img/63832.jpg)
14 |
O RING OF BRAKE ARRIEREORIGINE PIAGGIO 125 PX VESPA-006714 More informationQuantity required : 1 |
||||||
|
15 |
2201574 CLE CDE CV More informationQuantity required : 1 |
||||||
|
16 |
849238 - LEVIER 3 & 4 VIT More informationQuantity required : 1 |
||||||
|
17 |
013501 CAP S01350100 More informationQuantity required : 2 |
||||||
|
18 |
112202 PIVOT More informationQuantity required : 1 |
||||||
|
19 |
849245 LEVER 1 & 2 VIT More informationQuantity required : 1 |
||||||
|
20 |
873031 DOIGT More informationQuantity required : 2 |
||||||
|
21 |
849246 SIEGE More informationQuantity required : 2 |
||||||
|
22 |
849250 SPRING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/6/img/110226.jpg)
23 |
BILLE D = 7. 9 OEM PIAGGIO COMMON A LA RANGE-006380 More informationQuantity required : 2 |
