Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

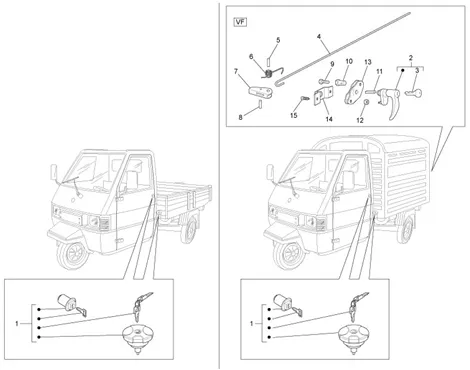

Parties plastiques-carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_02.46_20251008101541.PNG)
1 |
613726 COUPLE POUSSOIRS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/8/3/8/img/118838.jpg)
2 |
GRIP DE HAYON LIVRE WITH BARRILLET OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-257094 More informationQuantity required : 1 |
||||||
|
3 |
158831 CLE EBAUCHE More informationQuantity required : 1 |
||||||
|
4 |
140090 TIRANT More informationQuantity required : 2 |
||||||
|
5 |
008847 SPINDLE S00884700 More informationQuantity required : 2 |
||||||
|
6 |
141664 SPRING More informationQuantity required : 2 |
||||||
|
7 |
141663 DOIGT More informationQuantity required : 2 |
||||||
|
8 |
141666 PION More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
9 |
SCREW TH (6X12) OEM PIAGGIO COMMON A LA RANGE-031086 More informationQuantity required : 2 |
||||||
|
10 |
115817 EMBOUT More informationQuantity required : 2 |
||||||
|
11 |
217166 PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
12 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-804457 More informationQuantity required : 1 |
||||||
|
13 |
141833 PLATE More informationQuantity required : 1 |
||||||
|
14 |
217165 PONTET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
15 |
SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432 More informationQuantity required : 2 |
