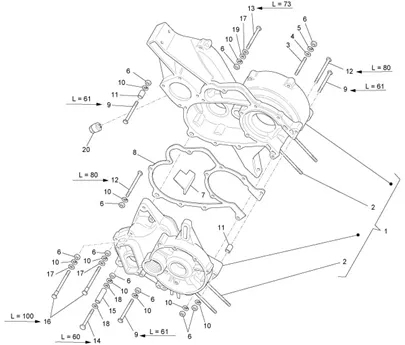

Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015 PIAGGIO VU

Moteur : 01.05 CARTER
Carter
Search
2883555 - CARTER MOTEUR

1
P2R reference P2R reference 124050
Maker reference Maker reference 2883555

2883555 - CARTER MOTEUR

More information

Quantity required : 1

016058 - GOUJON S01605800

2
P2R reference P2R reference 65410
Maker reference Maker reference 0160585

016058 - GOUJON S01605800

More information

Quantity required : 4

3
P2R reference P2R reference
Maker reference Maker reference 0004395

WASHER PLATE (7X12. 7. 1) OEM PIAGGIO COMMON A LA RANGE-003057

4
P2R reference P2R reference 63778
Maker reference Maker reference 0030575

WASHER PLATE (7X12. 7. 1) OEM PIAGGIO COMMON A LA RANGE-003057

More information

Quantity required : 2

WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407

5
P2R reference P2R reference 65417
Maker reference Maker reference 0164075

WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407

More information

Quantity required : 2

NUT (M7X5. 5) DE CYLINDER HEAD OEM PIAGGIO THREE-WHEELER APE 50/VESPA PX 125-020107

6
P2R reference P2R reference 65462
Maker reference Maker reference 0201075

NUT (M7X5. 5) DE CYLINDER HEAD OEM PIAGGIO THREE-WHEELER APE 50/VESPA PX 125-020107

More information

Quantity required : 20

126018 - PROTECTION

7
P2R reference P2R reference 110519
Maker reference Maker reference 126018

126018 PROTECTOR

More information

Quantity required : 1

GASKET OF CASING ENGINE OEM PIAGGIO THREE-WHEELER APE FUEL TM 703, P501, P601-878443

8
P2R reference P2R reference 114579
Maker reference Maker reference 878443

GASKET OF CASING ENGINE OEM PIAGGIO THREE-WHEELER APE FUEL TM 703, P501, P601-878443

More information

Quantity required : 1

008327 - BOULON S00832700

9
P2R reference P2R reference 110543
Maker reference Maker reference 0083275

008327 BOLT S00832700

More information

Quantity required : 7

WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407

10
P2R reference P2R reference 65417
Maker reference Maker reference 0164075

WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407

More information

Quantity required : 20

005437 - TUBE S00543700

11
P2R reference P2R reference 112023
Maker reference Maker reference 0054375

005437 TUBE S00543700

More information

Quantity required : 2

BOLT DE CASING ENGINE OEM PIAGGIO 125 VESPA PX (7X80)-008419

12
P2R reference P2R reference 63852
Maker reference Maker reference 0084195

BOLT DE CASING ENGINE OEM PIAGGIO 125 VESPA PX (7X80)-008419

More information

Quantity required : 3

13
P2R reference P2R reference
Maker reference Maker reference 0084115

BOLT SERRAGE (7X60) OEM PIAGGIO-015561

14
P2R reference P2R reference 110571
Maker reference Maker reference 0155615

BOLT SERRAGE (7X60) OEM PIAGGIO-015561

More information

Quantity required : 1

005433 - GOUJON S00543300

15
P2R reference P2R reference 111498
Maker reference Maker reference 0054335

005433 STUD S00543300

More information

Quantity required : 1

CASING SCREW ENGINE OEM PIAGGIO THREE-WHEELER APE TM703 FUEL-008415

16
P2R reference P2R reference 113260
Maker reference Maker reference 0084155

CASING SCREW ENGINE OEM PIAGGIO THREE-WHEELER APE TM703 FUEL-008415

More information

Quantity required : 4

077713 - RONDELLE

17
P2R reference P2R reference 110993
Maker reference Maker reference 0777135

077713 WASHER

More information

Quantity required : 6

18
P2R reference P2R reference
Maker reference Maker reference 0061335

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

19
P2R reference P2R reference 65366
Maker reference Maker reference 0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

More information

Quantity required : 1

235218 - BOUCHON

20
P2R reference P2R reference 116173
Maker reference Maker reference 235218

235218 CAP

More information

Quantity required : 1
