Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

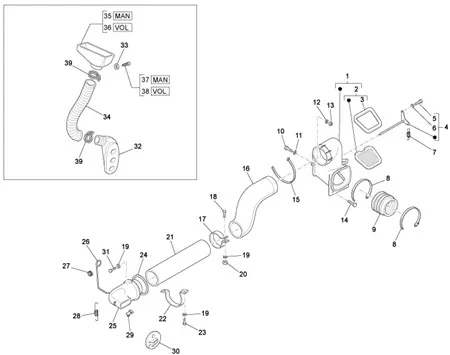

Parties plastiques-carrosseries : 02.58 SYSTEME DE CHAUFFAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_02.58_20251008101557.PNG)
1 |
1404945 - TUBE More informationQuantity required : 1 |
||||||
|
2 |
109096 - PORTE AIR More informationQuantity required : 1 |
||||||
|
3 |
JOINT |
||||||
|
4 |
1093305 SHAFT CPLT More informationQuantity required : 1 |
||||||
|
5 |
031023-SCREW S03102300 More informationQuantity required : 1 |
||||||
|
6 |
109329 - RONDELLE More informationQuantity required : 1 |
||||||
|
7 |
109744 SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
8 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/5/3/4/img/116534.jpg)
9 |
SOUFFLET DUCT DE CHAUFFAGE OEM PIAGGIO THREE-WHEELER APE FUEL TM 703, P501, P601-108827 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
10 |
SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
11 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
12 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
13 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206 More informationQuantity required : 2 |
||||||
|
14 |
|
||||||
|
15 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 2 |
||||||
|
16 |
1891385 - TUYAU AIR CHAUD More informationQuantity required : 1 |
||||||
|
17 |
216353 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/1/2/img/110312.jpg)
18 |
SCREW TH (4X45) OEM PIAGGIO COMMON A LA RANGE-658279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
19 |
WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
20 |
NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104 More informationQuantity required : 1 |
||||||
|
21 |
215015 HOSE AIR CHAUD More informationQuantity required : 1 |
||||||
|
22 |
215018 HALF CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/0/img/65400.jpg)
23 |
SCREW PARKER (3. 5X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015859 More informationQuantity required : 2 |
||||||
|
24 |
216191 GASKET More informationQuantity required : 1 |
||||||
|
25 |
219021 FITTING More informationQuantity required : 1 |
||||||
|
26 |
219026 TIRANT More informationQuantity required : 1 |
||||||
|
27 |
056825 GUIDE CABLE More informationQuantity required : 1 |
||||||
|
28 |
219024 SPRING More informationQuantity required : 1 |
||||||
|
29 |
RESSORT |
||||||
|
30 |
214163 ETRANGLEUR AIR CHAUD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/3/img/65433.jpg)
31 |
SCREW PARKER (3. 5X9) OEM PIAGGIO COMMON A LA RANGE-018508 More informationQuantity required : 3 |
||||||
|
32 |
216640 - CONVOYEUR More informationQuantity required : 1 |
||||||
|
33 |
WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054 More informationQuantity required : 2 |
||||||
|
34 |
214442 TUBE More informationQuantity required : 1 |
||||||
|
35 |
214550 SBRINATORE More informationQuantity required : 1 |
||||||
|
36 |
260379 DEGIVREUR More informationQuantity required : 1 |
||||||
|
37 |
SCREW PARKER (3. 5X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015859 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/0/img/65390.jpg)
38 |
SCREW OF CABOCHON INDICATOR OEM PIAGGIO 50 TYPHOON 2011 <-015730 More informationQuantity required : 2 |
||||||
|
39 |
D9004460123 CLAMP More informationQuantity required : 2 |
