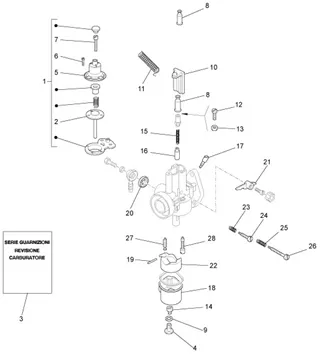

Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015 PIAGGIO VU

Moteur : 01.40 COMPOSANTS DE CARBURATEUR
Composants de carburateur
Search
195776 - COUVERCLE GAZ

1
P2R reference P2R reference 121656
Maker reference Maker reference 195776

195776 COVER THROTTLE

More information

Quantity required : 1

195785 - MEMBRANE

2
P2R reference P2R reference 117535
Maker reference Maker reference 195785

195785 MEMBRANE

More information

Quantity required : 1

POCHETTE/KIT JOINTS OF CARBURETTOR OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 1997 >-154793

3
P2R reference P2R reference 113836
Maker reference Maker reference 154753

POCHETTE/KIT JOINTS OF CARBURETTOR OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 1997 >-154793

More information

Quantity required : 1

493971 - BOUCHON

4
P2R reference P2R reference 117407
Maker reference Maker reference 493971

493971 CAP

More information

Quantity required : 1

195784 - COUVERCLE MEMBRANE

5
P2R reference P2R reference 117728
Maker reference Maker reference 195784

195784 COVER MEMBRANE

More information

Quantity required : 1

VIS

6
P2R reference P2R reference
Maker reference Maker reference 195774

VIS

195788 - VIS

7
P2R reference P2R reference 111196
Maker reference Maker reference 195788

195788 SCREW

More information

Quantity required : 1

CAPUCHON RUBBER DE GAINE CARBURETTOR OEM PIAGGIO COMMON A LA RANGE-813174

8
P2R reference P2R reference 68507
Maker reference Maker reference 813174

CAPUCHON RUBBER DE GAINE CARBURETTOR OEM PIAGGIO COMMON A LA RANGE-813174

More information

Quantity required : 2

GASKET CAP OF BOWL OEM PIAGGIO THREE-WHEELER APE TM 703 FUEL 1997 > 2016-493972

9
P2R reference P2R reference 111609
Maker reference Maker reference 493972

GASKET CAP OF BOWL OEM PIAGGIO THREE-WHEELER APE TM 703 FUEL 1997 > 2016-493972

More information

Quantity required : 1

195764 - SOUPAPE GAZ

10
P2R reference P2R reference 118909
Maker reference Maker reference 195764

195764 VALVE THROTTLE

More information

Quantity required : 1

093994 - RESSORT

11
P2R reference P2R reference 65681
Maker reference Maker reference 0939945

093994-SPRING

More information

Quantity required : 1

SCREW TENDEUR CABLE (6X20) OEM PIAGGIO APE-AP8222631

12
P2R reference P2R reference 72320
Maker reference Maker reference AP8222631

SCREW TENDEUR CABLE (6X20) OEM PIAGGIO APE-AP8222631

More information

Quantity required : 1

NUT (6X0. 75) OEM PIAGGIO COMMON A LA RANGE-002613

13
P2R reference P2R reference 63766
Maker reference Maker reference 0026135

NUT (6X0. 75) OEM PIAGGIO COMMON A LA RANGE-002613

More information

Quantity required : 1

CM120804 - GICLEUR

14
P2R reference P2R reference 114799
Maker reference Maker reference CM120804

CM120804 GICLEUR

More information

Quantity required : 1

195543 - RESSORT

15
P2R reference P2R reference 110140
Maker reference Maker reference 195543

195543 SPRING

More information

Quantity required : 1

195542 - SOUPAPE

16
P2R reference P2R reference 112222
Maker reference Maker reference 195542

195542 VALVE

More information

Quantity required : 1

183062 - GIGLEUR

17
P2R reference P2R reference 116161
Maker reference Maker reference 183062

183062 GIGLEUR

More information

Quantity required : 1

CARBURETTOR FLOAT BOWL OEM PIAGGIO THREE-WHEELER APE FUEL TM 703, P501, P601-154783

18
P2R reference P2R reference 113797
Maker reference Maker reference 154783

CARBURETTOR FLOAT BOWL OEM PIAGGIO THREE-WHEELER APE FUEL TM 703, P501, P601-154783

More information

Quantity required : 1

099316 - AXE

19
P2R reference P2R reference 111217
Maker reference Maker reference 0993165

099316 SPINDLE

More information

Quantity required : 1

FUEL FILTER OEM APRILIA 50-125 COMMON A LA RANGE MOTO 2005 </PIAGGIO THREE-WHEELER APE 50, TM 703 FUEL-099315

20
P2R reference P2R reference 65689
Maker reference Maker reference 0993155

FUEL FILTER OEM APRILIA 50-125 COMMON A LA RANGE MOTO 2005 </PIAGGIO THREE-WHEELER APE 50, TM 703 FUEL-099315

More information

Quantity required : 1

195772 - BALANCIER CDE GAZ

21
P2R reference P2R reference 110980
Maker reference Maker reference 195772

195772 BALANCIER CDE THROTTLE

More information

Quantity required : 1

099326 - FLOTTEUR

22
P2R reference P2R reference 113830
Maker reference Maker reference 0993265

099326 FLOTTEUR

More information

Quantity required : 1

SPRING SCREW AIR CARBU OEM PIAGGIO COMMON A LA RANGE-152608

23
P2R reference P2R reference 65751
Maker reference Maker reference 152608

SPRING SCREW AIR CARBU OEM PIAGGIO COMMON A LA RANGE-152608

More information

Quantity required : 1

195769 - VIS REGLAGE RALENTI

24
P2R reference P2R reference 65820
Maker reference Maker reference 195769

195769-SCREW REGLAGE RALENTI

More information

Quantity required : 1

094221 - RESSORT

25
P2R reference P2R reference 110531
Maker reference Maker reference 0942215

094221 SPRING

More information

Quantity required : 1

195770 - VIS

26
P2R reference P2R reference 112213
Maker reference Maker reference 195770

195770 SCREW

More information

Quantity required : 1

POINTEAU OF CARBURETTOR OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 1997 >-245955

27
P2R reference P2R reference 114070
Maker reference Maker reference 245955

POINTEAU OF CARBURETTOR OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 1997 >-245955

More information

Quantity required : 1

151070 - GICLEUR

28
P2R reference P2R reference 112007
Maker reference Maker reference 151070

151070 GICLEUR

More information

Quantity required : 1
