Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

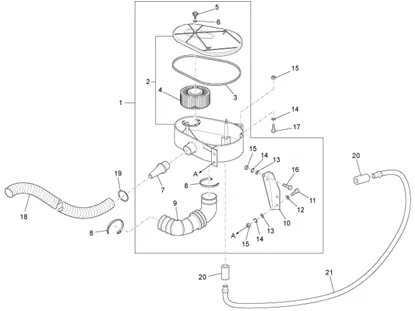

Moteur : 01.45 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_01.45_20251008101339.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/5/8/2/img/121582.jpg)
1 |
AIR FILTER HOUSING "PIAGGIO GENUINE PART" APE TM703 -263599 More informationQuantity required : 1 |
||||||
|
2 |
AIR FILTER HOUSING "PIAGGIO GENUINE PART" APE TM703 -263599 More informationQuantity required : 1 |
||||||
3 |
JOINT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/1/7/9/img/115179.jpg)
4 |
AIR FILTER OEM PIAGGIO THREE-WHEELER APE FUEL CAR, TM703, P601, P501-438014 More informationQuantity required : 1 |
||||||
|
5 |
149323 BUTTON More informationQuantity required : 3 |
||||||
|
6 |
157227 GASKET More informationQuantity required : 3 |
||||||
|
7 |
414424 TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
8 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/4/5/3/img/117453.jpg)
9 |
SLEEVE/FITTING AIR FILTER OEM PIAGGIO THREE-WHEELER APE ESSNCE TM703 1997 > 2016-220403 More informationQuantity required : 1 |
||||||
|
10 |
2140165 BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
11 |
SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089 More informationQuantity required : 2 |
||||||
|
12 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
13 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
14 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
15 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/8/img/65638.jpg)
16 |
SCREW TH (6X15) OEM PIAGGIO COMMON A LA RANGE-031087 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/1/img/65641.jpg)
17 |
SCREW TH (6X20) OEM PIAGGIO COMMON A LA RANGE-031090 More informationQuantity required : 1 |
||||||
|
18 |
257942 - TUYAU More informationQuantity required : 1 |
||||||
|
19 |
217149 CIRCLIPS More informationQuantity required : 1 |
||||||
|
20 |
162314 SLEEVE More informationQuantity required : 2 |
||||||
|
21 |
162312 HOSE FITTING More informationQuantity required : 1 |
