Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

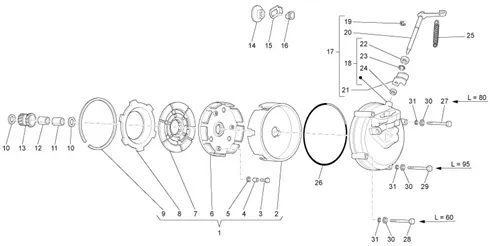

Moteur : 01.34 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_01.34_20251008101315.PNG)
1 |
CLUTCH COMPLETE OEM PIAGGIO THREE-WHEELER APE FUEL TM 703, CAR-2212475 More informationQuantity required : 1 |
||||||
|
2 |
1349965 BOX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
3 |
SCREW TH (6X25) OEM PIAGGIO COMMON A LA RANGE-031092 More informationQuantity required : 3 |
||||||
|
4 |
132637 SPACER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
5 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 3 |
||||||
|
6 |
2224905 DISC CLUTCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/1/0/img/151210.jpg)
7 |
1689096 DISC ENTRAINEUR More informationQuantity required : 1 |
||||||
|
8 |
DISQUE ENTRAIN.EMBRAYAGE MPV |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/0/5/img/111405.jpg)
9 |
CLIPS/CIRCLIPS CLUTCH OEM PIAGGIO TRIPORTEUT APE TM703 FUEL-144400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/0/3/3/img/117033.jpg)
10 |
BUSH/BUSH CLUTCH OEM PIAGGIO THREE-WHEELER APE FUEL CAR P2 1972 > 1986, P501, P601, TM 703 1989 < 2016-222486 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/4/7/img/114647.jpg)
11 |
BUSH BRONZE CLUTCH OEM PIAGGIO THREE-WHEELER APE TM703 FUEL-222487 More informationQuantity required : 1 |
||||||
|
12 |
222488 WASHER More informationQuantity required : 2 |
||||||
|
13 |
2224794 GEAR ENGINE More informationQuantity required : 1 |
||||||
|
14 |
133425 POUSSOIR More informationQuantity required : 1 |
||||||
|
15 |
1451045 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
16 |
144408 - NOIX EMB More informationQuantity required : 1 |
||||||
|
17 |
2212005 COVER CLUTCH More informationQuantity required : 1 |
||||||
|
18 |
2212015 COVER CLUTCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/9/img/63799.jpg)
19 |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-005970 More informationQuantity required : 1 |
||||||
|
20 |
2217361-LEVER More informationQuantity required : 1 |
||||||
|
21 |
16722616 FORK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/4/4/img/112144.jpg)
22 |
CAGE A AIGUILLES ARTICULATION BARRE DE STEERING OEM PIAGGIO 125-250-300-400-500 MP3-167016 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/9/8/8/img/113988.jpg)
23 |
BUSH ETANCHEITE DE BARRE STEERING (12X16X3) OEM PIAGGIO 125-250-300-400-500 MP3/GILERA 500 FUOCO-167018 More informationQuantity required : 1 |
||||||
|
24 |
167017 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/9/6/img/111896.jpg)
25 |
SPRING LEVER CLUTCH OEM PIAGGIO THREE-WHEELER APE TM 703 FUEL-112258 More informationQuantity required : 1 |
||||||
|
26 |
078795 GASKET More informationQuantity required : 1 |
||||||
|
27 |
015656 SCREW S01565600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/7/1/img/110571.JPG)
28 |
BOLT SERRAGE (7X60) OEM PIAGGIO-015561 More informationQuantity required : 2 |
||||||
|
29 |
015563 SCREW S01556300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/7/img/65417.jpg)
30 |
WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407 More informationQuantity required : 4 |
||||||
|
31 |
WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407 More informationQuantity required : 4 |
