Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

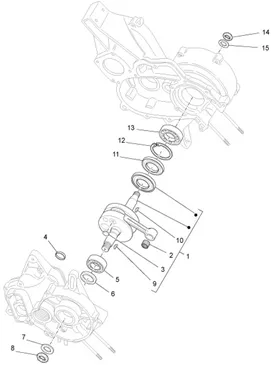

Moteur : 01.06 VILEBREQUIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_01.06_20251008101156.PNG)
1 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/8/6/9/img/115869.jpg)
2 |
CAGE A AIGUILLE DE PISTON OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 1997 > 2016-500531 More informationQuantity required : 1 |
||||||
|
2 |
500532 CAGE More informationQuantity required : 1 |
||||||
|
2 |
500533 CAGE A AIGU More informationQuantity required : 1 |
||||||
|
2 |
500534 CAGE A AIGU More informationQuantity required : 1 |
||||||
|
3 |
1697676 BUSH SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/8/0/6/img/113806.jpg)
4 |
SHEET METAL RAMASSE OIL OEM PIAGGIO THREE-WHEELER APE TM703 FUEL-221261 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/8/1/7/img/118817.jpg)
5 |
BEARING VILLEBREQUIN (10-6347) OEM PIAGGIO THREE-WHEELER APE FUEL TM 703-134591 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/8/7/6/img/114876.jpg)
6 |
OIL SEAL (24. 9X40X6. 5) ENGINE OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 1989 > 2016, P501, P601-169810 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/2/7/img/110327.jpg)
7 |
WASHER EVENTAIL (D = 17) OEM PIAGGIO COMMON A LA RANGE-012557 More informationQuantity required : 1 |
||||||
|
8 |
021216 NUT S02121600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/4/img/63674.jpg)
9 |
CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/6/8/1/img/112681.jpg)
10 |
CLAVETTE CLUTCH OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-018209 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/5/9/2/img/117592.jpg)
11 |
OIL SEAL (34X62X6) EMBIELLAGE OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 1989 > 2016, P501, P601, CAR P2 1972 > 1986-222478 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/7/img/63827.jpg)
12 |
CLIPS/CIRCLIPS (66X2) OEM PIAGGIO COMMON A LA RANGE-006662 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/3/7/8/img/116378.jpg)
13 |
BEARING (25X62X17) ENGINE OEM PIAGGIO THREE-WHEELER APEESSENCE TM 703-169809 More informationQuantity required : 1 |
||||||
|
14 |
168904 NUT FIX CLUTCH More informationQuantity required : 1 |
||||||
|
15 |
224362 WASHER FIX EMB More informationQuantity required : 1 |
