Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

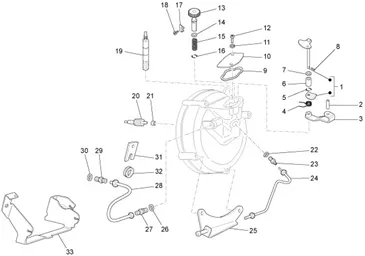

Moteur : 01.18 POMPE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_01.18_20251008101216.PNG)
1 |
2212255 GROUP SHAFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/5/8/img/112058.jpg)
2 |
PIVOT OF PUMP A OIL OEM PIAGGIO THREE-WHEELER APE TM 703 FUEL-133516 More informationQuantity required : 1 |
||||||
|
3 |
1445244 LEVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/9/3/img/111493.jpg)
4 |
SPRING OIL PUMP OEM PIAGGIO THREE-WHEELER APE TM 703 FUEL-199899 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/8/img/63828.jpg)
5 |
O-RING PIAGGIO COMMON A LA RANGE-006705 More informationQuantity required : 1 |
||||||
|
6 |
217635 BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/1/4/img/111214.jpg)
7 |
WASHER SPECIALE OIL PUMP OEM PIAGGIO THREE-WHEELER APE TM 703 FUEL-143315 More informationQuantity required : 1 |
||||||
|
8 |
008806 GOUPILLE S00880600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/1/6/img/110616.jpg)
9 |
GASKET COVER OIL PUMP OEM PIAGGIO THREE-WHEELER APE TM 703 FUEL-144521 More informationQuantity required : 1 |
||||||
|
10 |
144520 COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
11 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
12 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109 More informationQuantity required : 2 |
||||||
|
13 |
2183355 GROUP PUMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/6/img/66346.jpg)
14 |
WASHER OIL PUMP OEM PIAGGIO 125 PX VESPA-400282 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/2/2/img/111522.jpg)
15 |
SPRING OF PUMP A OIL OEM PIAGGIO THREE-WHEELER APE TM 703 FUEL 1997 > 2016-143328 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/0/img/63830.jpg)
16 |
O-RING (9X12. 5X1. 7) OEM PIAGGIO THREE-WHEELER APE TM 703 FUEL, PX125 VESPA-006708 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/4/img/65744.jpg)
17 |
PLATE OF PUMP A OIL OEM PIAGGIO 125 PX VESPA-146087 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/3/img/65743.jpg)
18 |
SCREW SPECIALE OF PUMP A OIL OEM PIAGGIO 125 PX VESPA-146086 More informationQuantity required : 1 |
||||||
|
19 |
143316 SHAFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/4/6/1/img/120461.jpg)
20 |
GEAR OF PUMP A OIL OEM PIAGGIO THREE-WHEELER APE FUEL TM 703 1989 >, CAR, 601-221204 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/0/3/img/110503.jpg)
21 |
BUSH OF PUMP A OIL OEM PIAGGIO THREE-WHEELER APE TM 703 FUEL-221203 More informationQuantity required : 1 |
||||||
|
22 |
JOINT |
||||||
|
23 |
220302 SCREW FITTING More informationQuantity required : 1 |
||||||
|
24 |
220303 - TUYAU ADDUCTEUR More informationQuantity required : 1 |
||||||
|
25 |
2213004 BRACKET TUBE More informationQuantity required : 1 |
||||||
|
26 |
077713 WASHER More informationQuantity required : 1 |
||||||
|
27 |
221140 SCREW FITTING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/4/8/5/img/118485.jpg)
28 |
HOSE/FITTING OIL PUMP OEM PIAGGIO THREE-WHEELER APE FUEL TM703-221142 More informationQuantity required : 1 |
||||||
|
29 |
2210535 - RACCORD CPLT More informationQuantity required : 1 |
||||||
|
30 |
166741 GASKET More informationQuantity required : 1 |
||||||
|
31 |
PLAQUETTE |
||||||
|
32 |
016516 GUIDE CABLE More informationQuantity required : 1 |
||||||
|
33 |
221354 BUTEE TRANS More informationQuantity required : 1 |
