Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

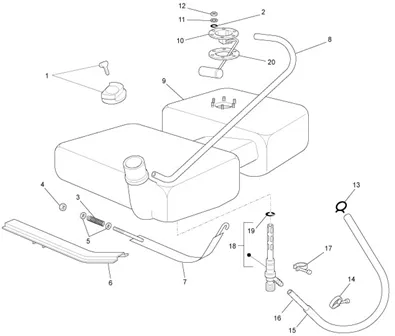

Parties plastiques-carrosseries : 02.47 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_02.47_20251008101546.PNG)
1 |
613726 COUPLE POUSSOIRS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/3/img/65343.JPG)
2 |
WASHER EVENTAIL (4. 2X8X1. 1) OEM PIAGGIO COMMON A LA RANGE-012531 More informationQuantity required : 6 |
||||||
|
3 |
217254 SPRING More informationQuantity required : 1 |
||||||
|
4 |
002418 NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.jpg)
5 |
WASHER PLATE (8. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-002383 More informationQuantity required : 1 |
||||||
|
6 |
2174065 - BARRE RESERVOIR More informationQuantity required : 1 |
||||||
|
7 |
189317 SANGLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/4/8/img/113248.jpg)
8 |
FUEL HOSE OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-CM031701 More informationQuantity required : 1 |
||||||
|
9 |
247486 FUEL TANK More informationQuantity required : 1 |
||||||
|
10 |
B004946 - JAUGE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
11 |
WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
12 |
NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
13 |
CLAMP FOR HOSE DE 13MM OEM PIAGGIO COMMON A LA RANGE-CM002907 More informationQuantity required : 1 |
||||||
|
14 |
COLLIER |
||||||
|
15 |
216327 HOSE More informationQuantity required : 1 |
||||||
|
16 |
1R000161 FUEL HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
17 |
CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/3/8/0/img/116380.jpg)
18 |
ROBINET FUEL OEM PIAGGIO THREE-WHEELER APE FUEL 50 2T 1998 > 2018, TM 703-189320 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
19 |
GASKET OF ROBINET FUEL OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-196868 More informationQuantity required : 1 |
||||||
|
20 |
127152 GASKET More informationQuantity required : 1 |
